Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. Warm up the engine to normal operating temperature.
  3. Monitor TPS related parameter on the "Current Data  " with GDS.

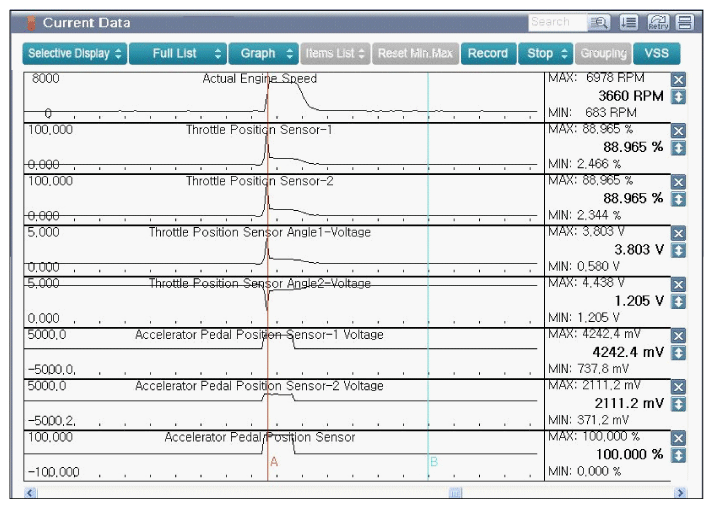

    Fig 1: Screen Display - Check Change Under Condition Of Acceleration And Deceleration
    G12150186Courtesy of KIA MOTORS AMERICA, INC.

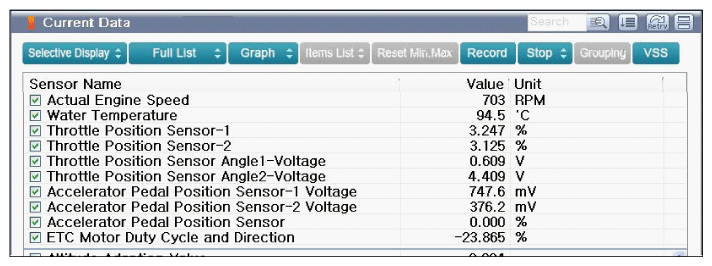

    Fig 2: Screen Display - Check TPS And APS Under Idle State
    G12150187Courtesy of KIA MOTORS AMERICA, INC.
  4. Are the parameters displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or ECM/PCM's connector or was repaired and ECM/PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Vehicle Repair " procedure.

    NO
