Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

Maintain clean condition so that foreign substance does not get into the automatic transaxle.
Use a coated apron, latex gloves, and stainless tray to prevent foreign substance from getting into the transaxle.

Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ").

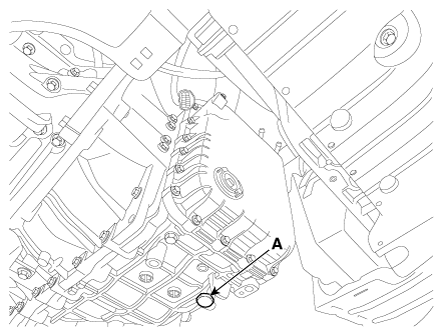

Remove the ATF drain plug (A), allow the fluid to drain out and then reinstall the drain plug.
Tightening Torque:

33.3 - 43.1 N.m (3.4 - 4.4 kgf.m, 24.6 - 31.8 lb.ft)

Fig 1: Removing ATF Drain Plug
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- The existing ATF Drain Plug Gasket must be replaced with a new one. (Do not reuse it.)
- ATF can be reused. Collect it in a clean beaker.
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

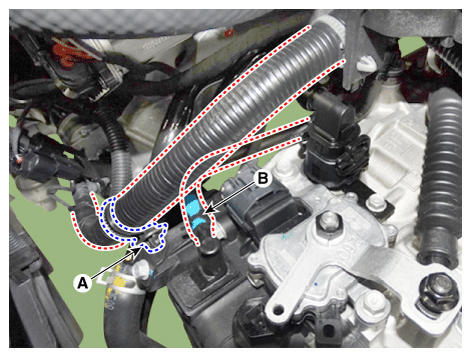

Remove the wiring bracket (A) and the air breather hose (B).
Tightening Torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Fig 2: Removing Wiring Bracket And Air Breather Hose
Courtesy of KIA MOTORS AMERICA, INC.
Lift the vehicle after loosening valve body cover upper bolts.

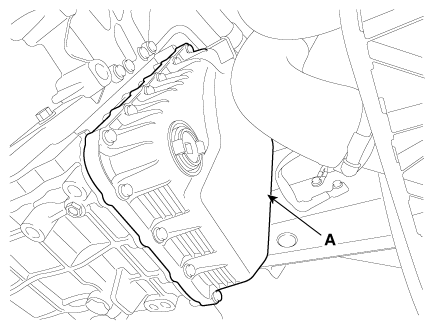

Remove the valve body cover (A) by loosening bolts.
Tightening Torque:

11.8 - 13.7 N.m (1.2 - 1.4 kgf.m, 8.7 - 10.1 lb.ft)

Fig 3: Removing Valve Body Cover
Courtesy of KIA MOTORS AMERICA, INC.

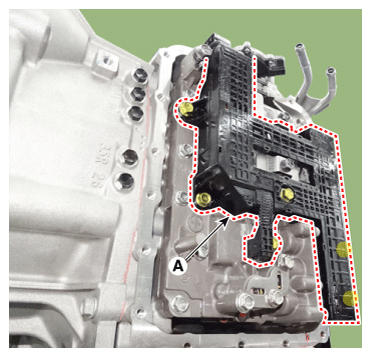

Remove the main harness module (A) after removing the bolts.
Tightening Torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Fig 4: Removing Main Harness Module
Courtesy of KIA MOTORS AMERICA, INC.

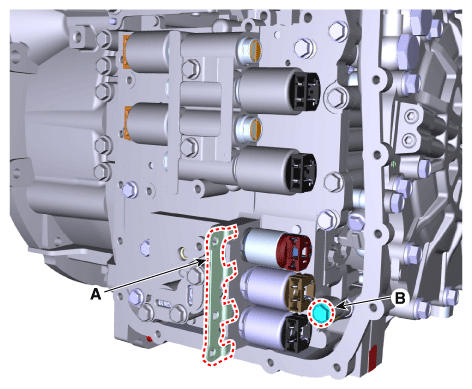

Remove the solenoid valve support bracket (A) and then loosen the valve body mounting bolt (B).
Tightening Torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Fig 5: Removing Solenoid Valve Support Bracket
Courtesy of KIA MOTORS AMERICA, INC.

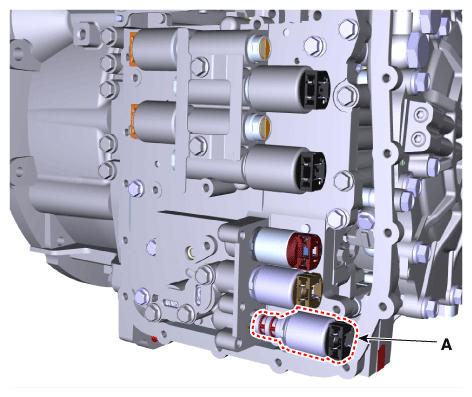

Remove the Line Pressure Control Solenoid Valve (A).

Fig 6: Removing Line Pressure Control Solenoid Valve

Courtesy of KIA MOTORS AMERICA, INC.
