Repair Procedures: Inspection

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the overhead console lamp.
(Refer to Lighting System - "OVERHEAD CONSOLE LAMP ")
Remove the hands free mic (A) after loosening the mounting screws.

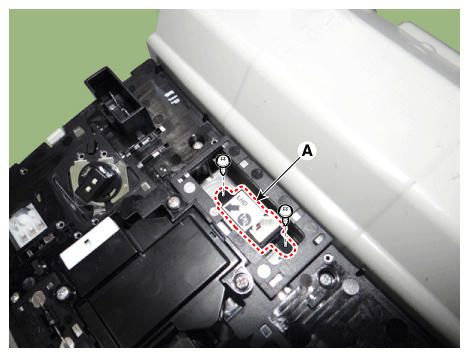

Fig 1: Removing Hands Free MIC Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
Check the continuity of between terminals.

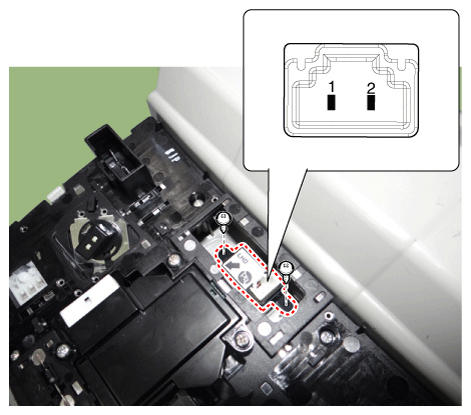

Fig 2: Locating MIC Connector (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Locating MIC Connector (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
