Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")
Remove the crash pad plate [LH] (A) after loosening the screws.

Fig 1: Removing Crash Pad Plate Screws
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the crash pad side switch connector (A).

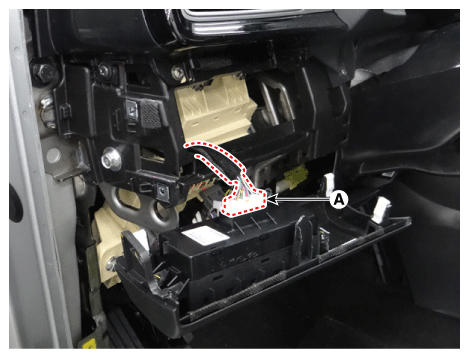

Fig 2: Locating Crash Pad Side Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the crash pad side switch (A) after loosening the screws.

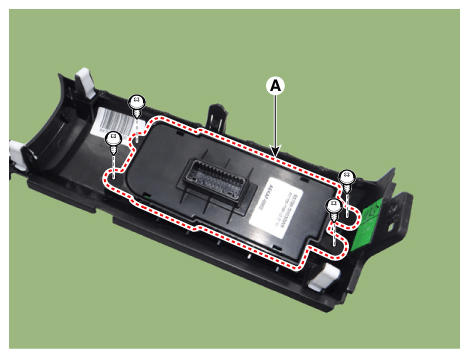

Fig 3: Removing Crash Pad Side Switch Screws

Courtesy of KIA MOTORS AMERICA, INC.
