Component Inspection

■ Check APS

1. Connect KDS/GDS to DLC (Data Link Cable).
2. Warm up the Engine to normal operating temperature.
3. Check the "Current Data" about related DTC with KDS/GDS.

   Specification:  Refer to Fig 1, Fig 2

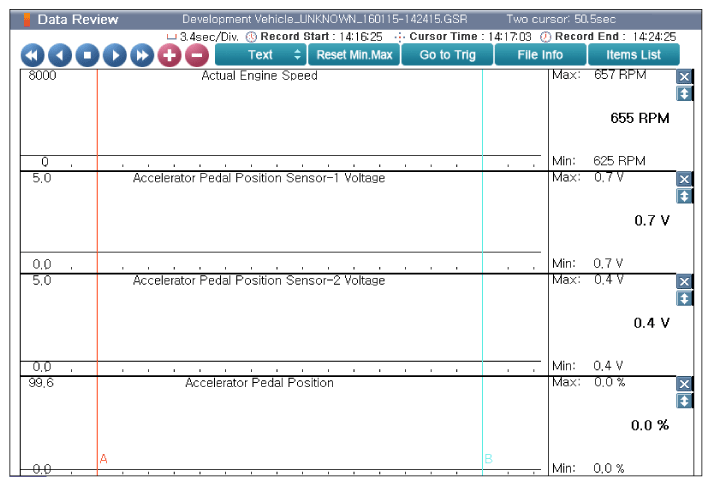

   Fig 1: Screen Display - Engine Idle After Warm Up

   Courtesy of KIA MOTORS AMERICA, INC.

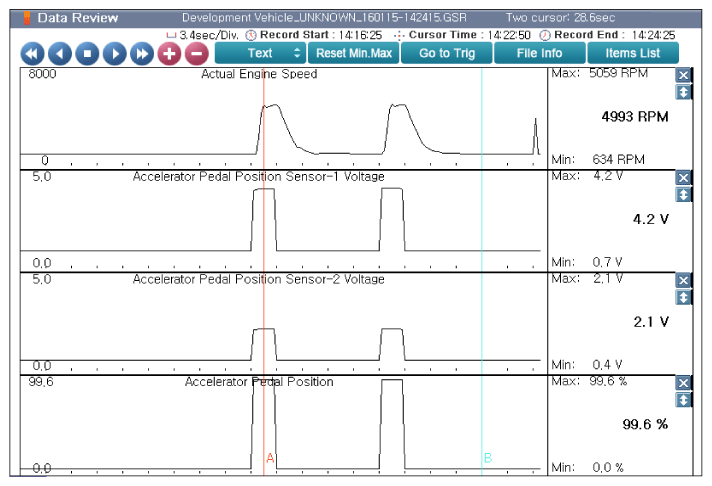

   Fig 2: Screen Display - Acceleration

   Courtesy of KIA MOTORS AMERICA, INC.
4. Are the parameters displayed correctly?

   YES

   • Go to "Verification of Vehicle Repair " procedure.

   NO

   • Carefully re-do this troubleshooting guide steps.
   • If the diagnostics have been performed correctly with no failure found, replace the APS and then go to "Verification of Vehicle Repair " procedure.
