Signal Waveform & Data

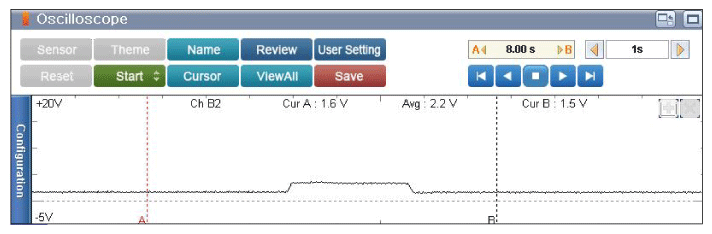

Fig 1: Screen Display - Normal Waveform Of VCM Position Sensor At Acceleration
G12149843Courtesy of KIA MOTORS AMERICA, INC.

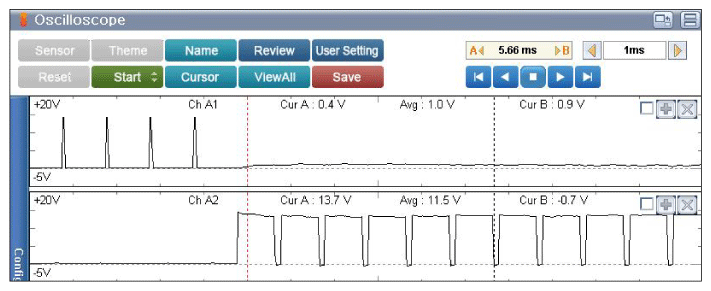

Fig 2: Screen Display - Normal Waveform Of VCM Motor Control Line At Acceleration (Flap Open)
G12149844Courtesy of KIA MOTORS AMERICA, INC.

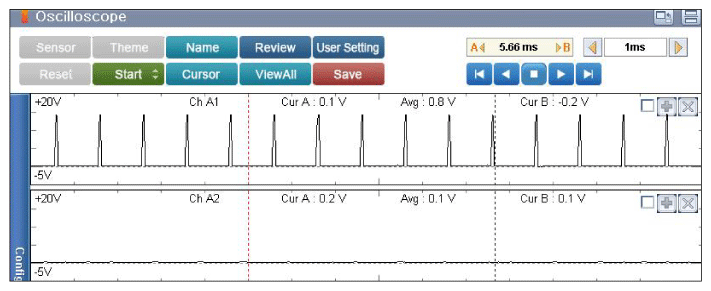

Fig 3: Screen Display - Normal Waveform Of VCM Motor Control Line At Idle (Flap Close)
G12149845Courtesy of KIA MOTORS AMERICA, INC.
