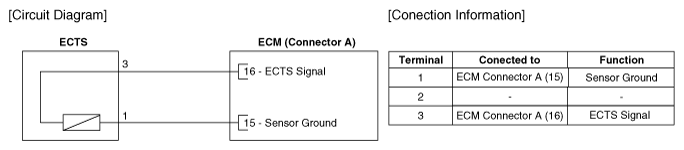

Home >> Kia >> 2017 >> Forte S >> Repair and Diagnosis (Single Page) >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0L MPI Nu >> Engine Coolant Temperature Sensor (ECTS) >> Schematic Diagrams >> Circuit Diagram >> Notes
