Components And Components Location: Components

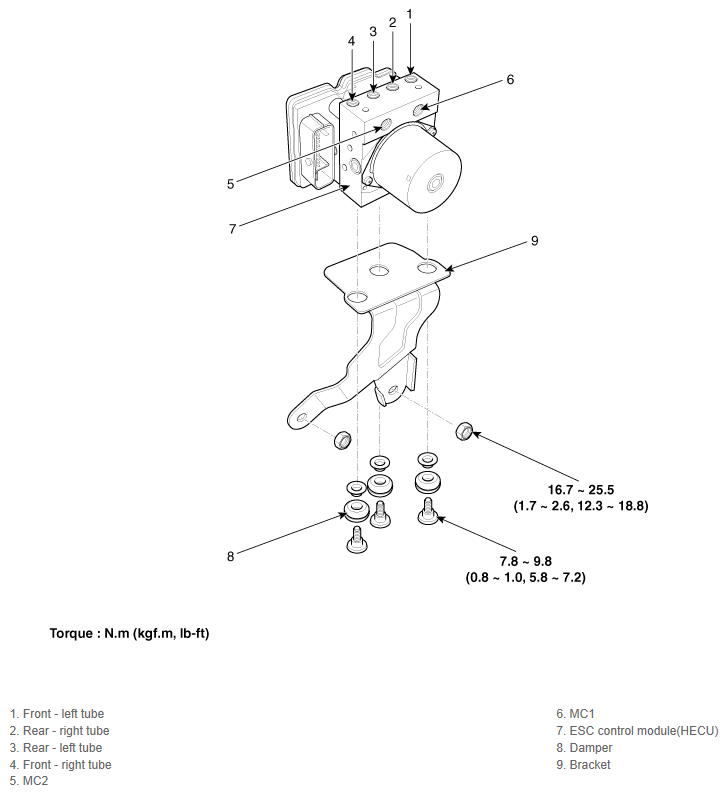

Fig 1: ESC Control Module Components Location With Torque Specification

G12163884

Courtesy of KIA MOTORS AMERICA, INC.
