Components And Components Location: Components: Notes

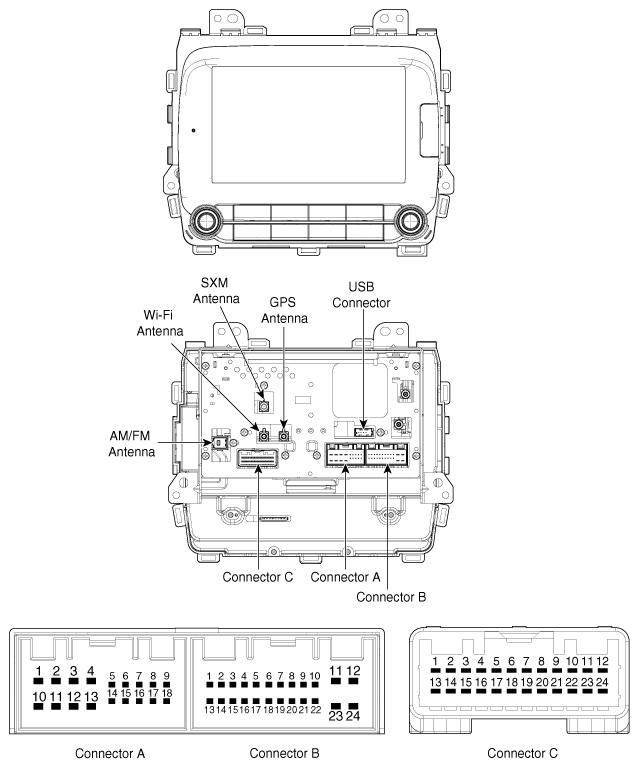

Fig 1: AVN Head Unit Components Connector Location

G12164568

Courtesy of KIA MOTORS AMERICA, INC.
