Section 268 (HEV Control System Diagnosis)
>>
DTC P1679: Immobilizer - EMS Data Fail (Data Frame, CS, Message Error)
>>
Component Location
>>
Component Location
Component Location
WARNING:
This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

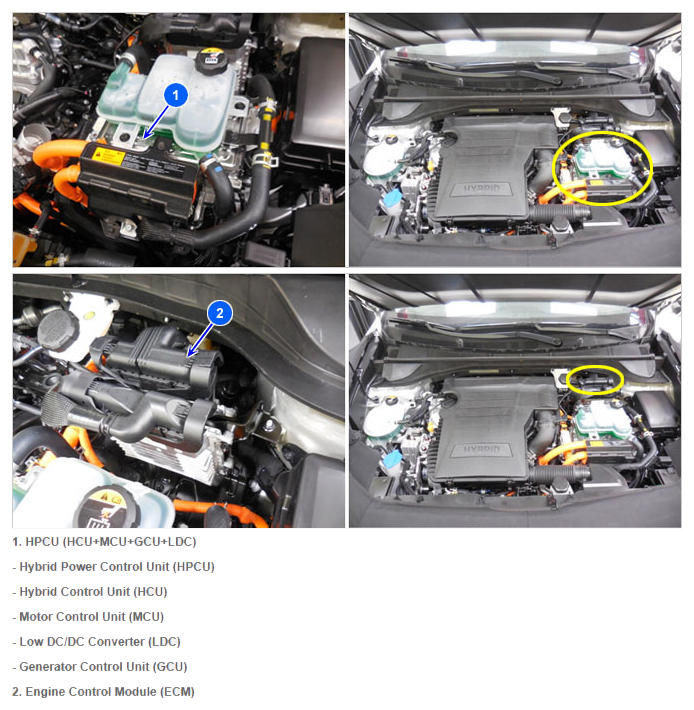

Fig 1: Locating HPCU - (HCU+MCU+GCU+LDC) And ECM (Engine Control Module) Components
Courtesy of KIA MOTORS AMERICA, INC.
