BCM Diagnosis With KDS/GDS

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

In the Body Electrical System, failure can be quickly diagnosed by using the vehicle diagnostic system (KDS/GDS).
The diagnostic system (KDS/GDS) provides the following information.
1. Self Diagnosis: Checking failure and code number (DTC)
2. Current Data: Checking the system input/output data state
3. Actuation Test: Checking the system operation condition
4. Additional Function: Controlling other features including system option setting and zero point adjustment
Select the "Car Model" and the 'Body Control Module (BCM)' to be checked in order to check the vehicle with the tester.
Select the 'Current Data' menu to search the current state of the input/output data.

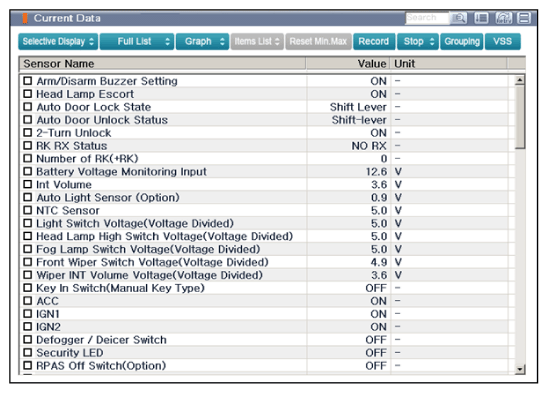

Fig 1: Screen Display - Select Current Data Menu
Courtesy of KIA MOTORS AMERICA, INC.
If you want to change user option, select "User Option".

Fig 2: Screen Display - Select 'User Option'

Courtesy of KIA MOTORS AMERICA, INC.

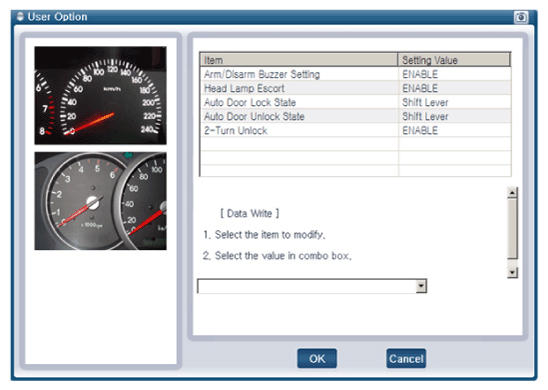

Fig 3: Screen Display - Select 'User Option' And 'Value In Combo Box'

Courtesy of KIA MOTORS AMERICA, INC.
