Home >> Kia >> 2017 >> Forte LX, Automatic Trans >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System - 2.0L MPI Nu (A6GF1) >> Shift Lever >> Components And Components Location >> Components

Components And Components Location: Components

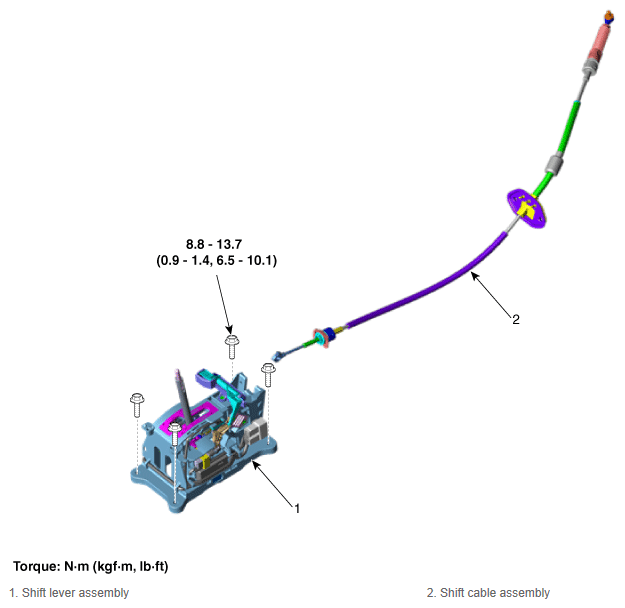

Fig 1: Shift Lever Components With Torque Specification

G12165800

Courtesy of KIA MOTORS AMERICA, INC.
