Repair Procedures: Installation

Check that the gear is shifted to "N".

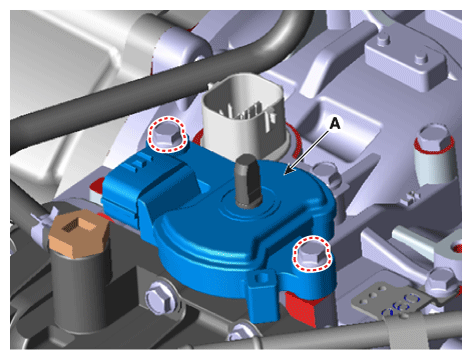

Install the inhibitor switch (A).
NOTE: Lightly tighten the inhibitor switch mounting bolts so that necessary adjustments can be made.

Fig 1: Installing Inhibitor Switch
Courtesy of KIA MOTORS AMERICA, INC.

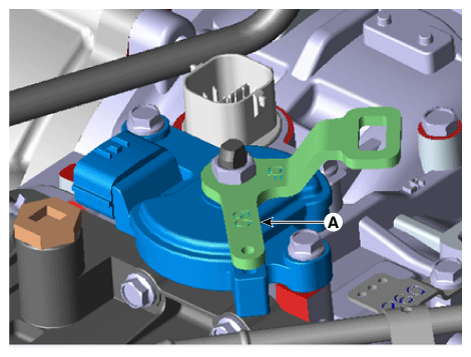

Install the Manual Control Lever (A).
NOTE: Lightly tighten the Manual Control Lever nut so that necessary adjustments can be made.

Fig 2: Installing Manual Control Lever
Courtesy of KIA MOTORS AMERICA, INC.

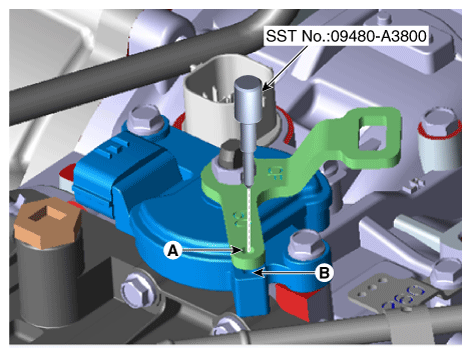

Align the hole (B) in the Manual Control Lever with the "N" position hole (A) of the inhibitor switch and then insert the SST inhibitor switch guide pin (09480-A3800).

Fig 3: Inserting SST Inhibitor Switch Guide Pin (09480-A3800)
Courtesy of KIA MOTORS AMERICA, INC.

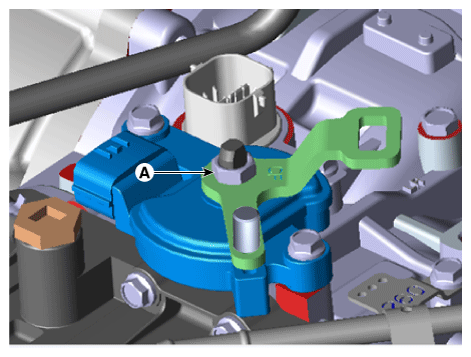

Tighten the Manual Control Lever mounting nut (A).
Tightening torque:

17.7 - 24.5 N.m (1.8 - 2.5 kgf.m, 13.0 - 18.1 lb.ft)

Fig 4: Installing Manual Control Lever Mounting Nut
Courtesy of KIA MOTORS AMERICA, INC.

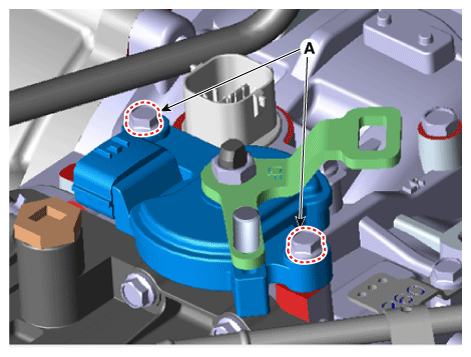

Tighten the inhibitor switch mounting bolts (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Fig 5: Installing Inhibitor Switch Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the SST (09480-A3800) from the adjustment hole.

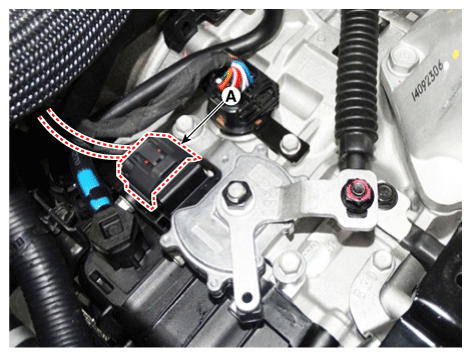

Connect the inhibitor switch connector (A).

Fig 6: Connecting Inhibitor Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.

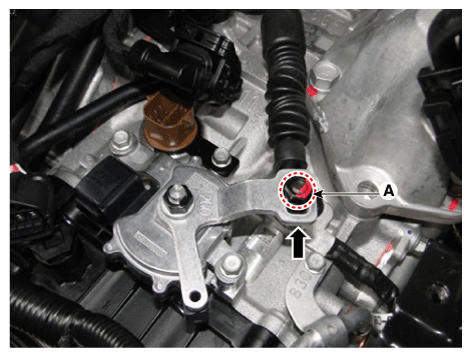

Tighten the nut (A) to the specified torque after removing free play by pushing the shift cable in the direction of the arrow.
Tightening torque:

9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb.ft)

Fig 7: Pushing Shift Cable
Courtesy of KIA MOTORS AMERICA, INC.
Install the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER - 2.0L MPI NU ")
