Repair Procedures: Inspection

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.

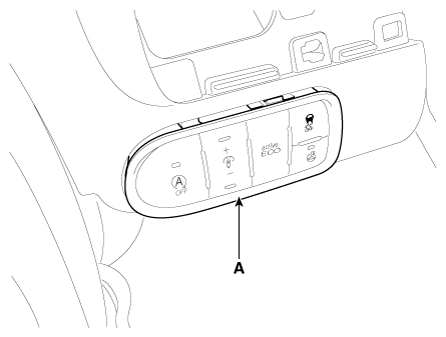

Remove the crash pad side switch assembly (A).

Fig 1: Crash Pad Side Switch Assembly
Courtesy of KIA MOTORS AMERICA, INC.

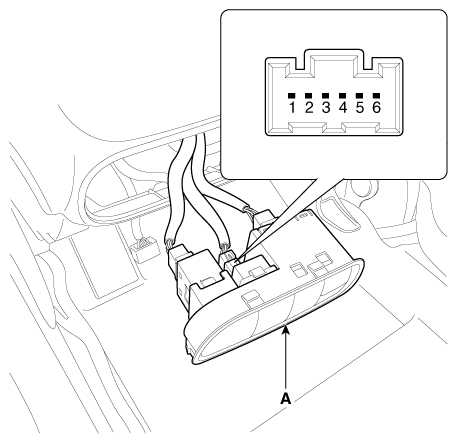

Disconnect the head lamp leveling switch connectors (A) from lower crash pad switch.

Fig 2: Head Lamp Leveling Switch Connectors From Lower Crash Pad Switch
Courtesy of KIA MOTORS AMERICA, INC.
Operate the rheostat switch and check for continuity between terminals.

Fig 3: Rheostat Switch Connector Terminals Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.
