Repair Procedures: Removal: Notes

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the Front Bumper Cover.
(Refer to Body - "FRONT BUMPER COVER ")

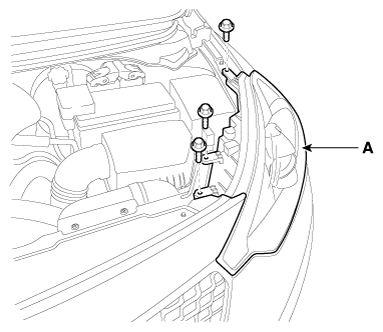

Loosening the head lamp mounting bolts (3EA) and disconnect the head lamp connector (B).
Then, remove the head lamp assembly (A).
NOTE:
- Take care not to scratch the head lamp lens or fender.
Fig 1: Head Lamp Assembly
Courtesy of KIA MOTORS AMERICA, INC.

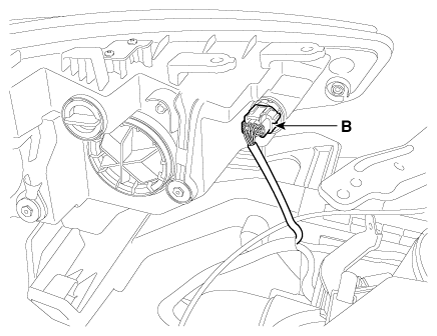

Fig 2: Head Lamp Connector
Courtesy of KIA MOTORS AMERICA, INC.

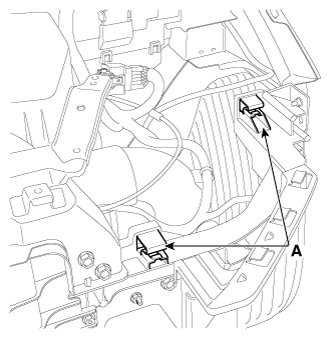

NOTE: Take care that holding clip (A) is not to be damaged.

Fig 3: Holding Clip
Courtesy of KIA MOTORS AMERICA, INC.

Information

When installing the HID head lamp, disconnect the head lamp leveling actuator connector.

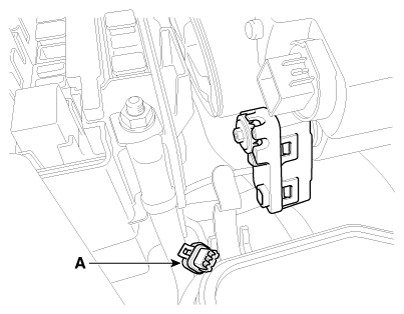

Fig 4: Head Lamp Leveling Actuator Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the dust caps from the head lamp assembly after turning in the counter clock-wise direction.

Fig 5: Removing Dust Caps From Head Lamp Assembly
