Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the center fascia panel.

    (Refer to Body - "CENTER FASCIA PANEL ")

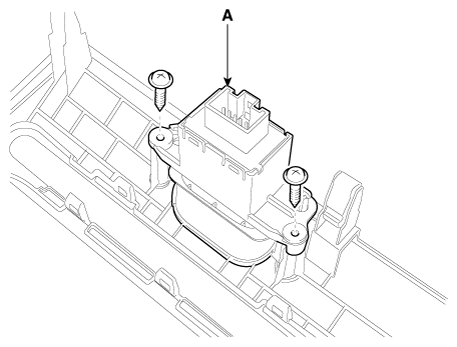

  3. Remove the hazard switch (A) after loosening the screws.
Fig 1: Hazard Switch Screws
G12166475Courtesy of KIA MOTORS AMERICA, INC.
