Circuit Diagram

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

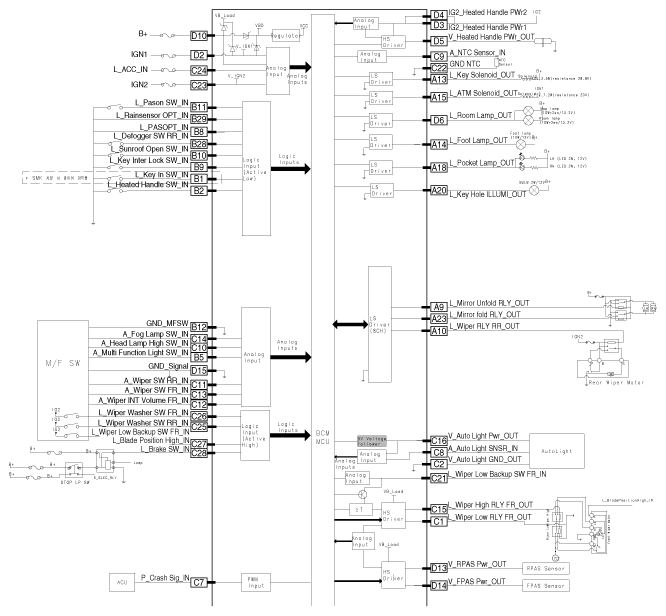

Fig 1: Body Control Module System Circuit (1 Of 2)
G12332310Courtesy of KIA MOTORS AMERICA, INC.

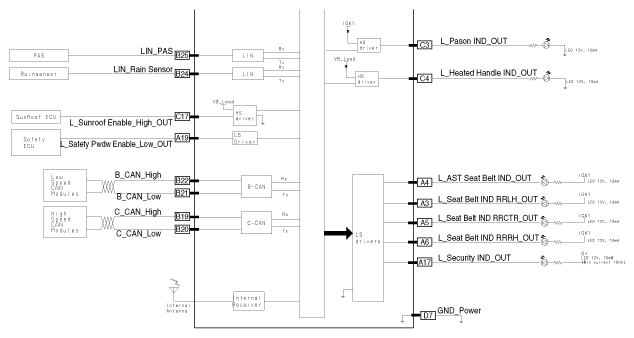

Fig 2: Body Control Module System Circuit (2 Of 2)
G12332311Courtesy of KIA MOTORS AMERICA, INC.
