Circuit Inspection
WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of KIA MOTORS AMERICA, INC.
| Inspection Condition |
(+) Probe |
(-) Probe |
Specification |
| Channel |
Connector |
Terminal |
Channel |
Connector |
Terminal |

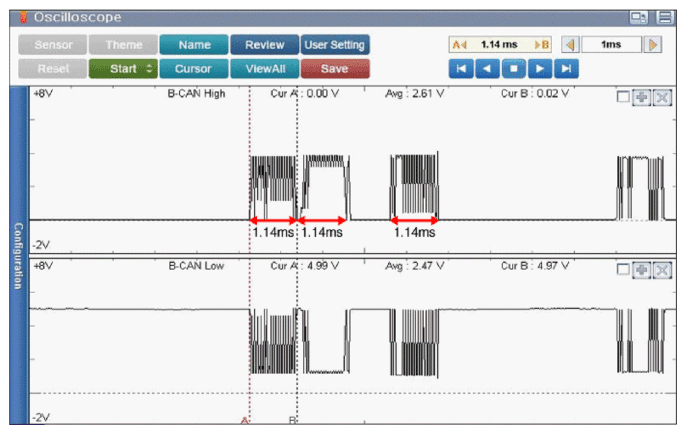

- Ignition "ON" & Engine "OFF".
|
CH-A |
DDM |
Pin No. 3 (B-CAN High) |
CH-A |
Chassis ground |
- |

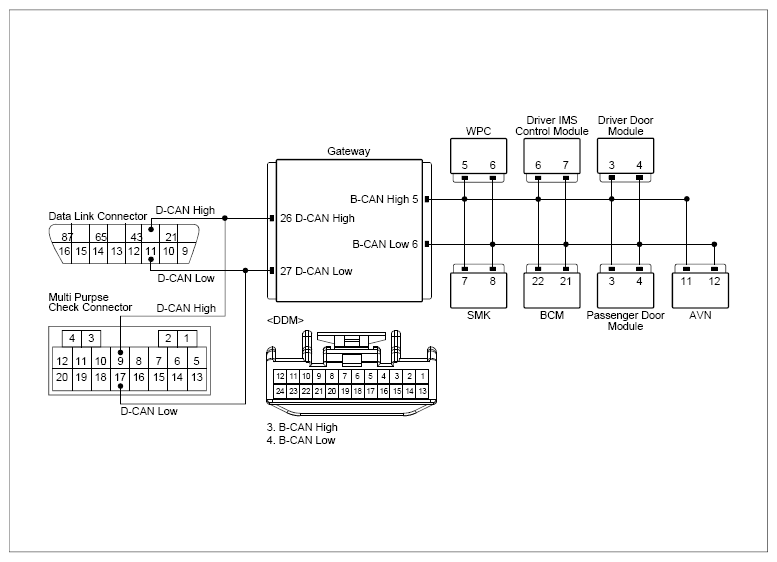

Fig.1 |
| CH-B |
DDM |
Pin No. 4 (B-CAN Low) |
CH-B |
Chassis ground |
- |
Courtesy of KIA MOTORS AMERICA, INC.
| Good |
- Disconnect B-CAN communication units one by one and monitor DTC to find the cause.
- If the DTC is erased, check for proper operation. If the problem is corrected, replace the unit and go to "VERIFICATION OF REPAIR " procedure.
|
| No Good |
- Check for open, short to battery/ground in B-CAN line.
- Repair as necessary, go to "VERIFICATION OF REPAIR " procedure.
|
