On-Line On KDS

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch "OFF" ignition, and connect KDS.
  2. With ignition "ON" & Engine "OFF", select vehicle name and airbag system.
  3. Select Variant coding mode.

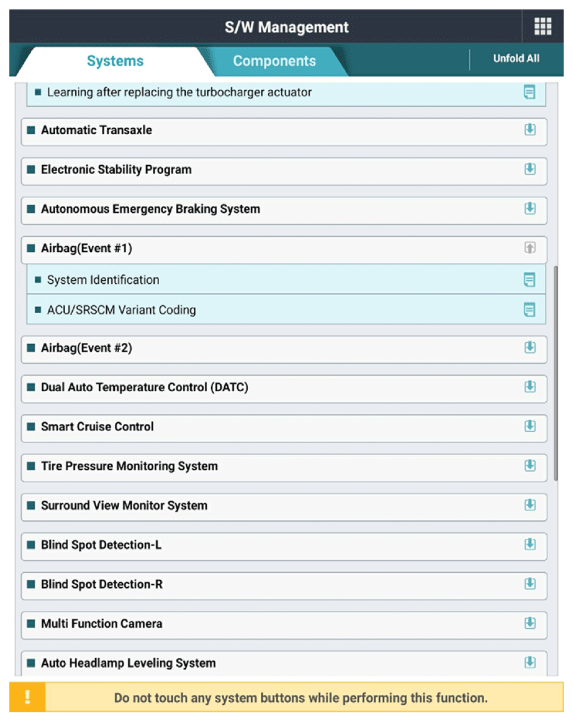

    Fig 1: Screen Display - Variant Coding Procedure
    G12329739Courtesy of KIA MOTORS AMERICA, INC.
  4. Enter the VIN code.
