Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery negative terminal, and wait for at least thirty seconds before beginning work.
Disconnect the front impact sensor connector (A).

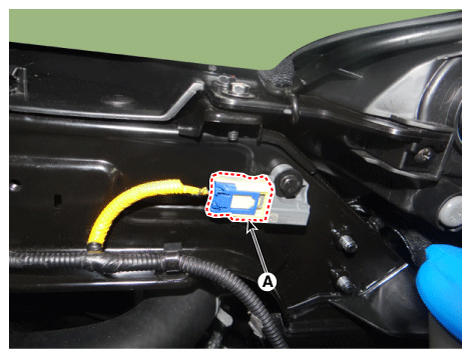

Fig 1: Disconnecting Front Impact Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the mounting bolts. Remove the front collision detection sensor (B).
Tightening Torque:

8.0 - 10.0 N.m (0.8 - 1.0 kgf.m, 5.9 - 7.3 lb-ft)

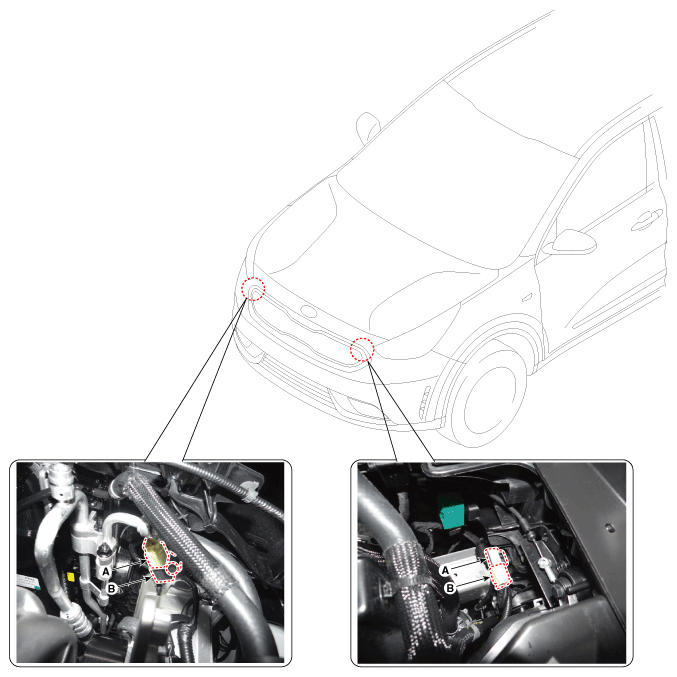

Fig 2: Removing Front Collision Detection Sensor
Courtesy of KIA MOTORS AMERICA, INC.
