Repair Procedures: Removal: Notes

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

[Front Seat]

Disconnect the negative (-) battery terminal.
Remove the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")
Disconnect the front seat heater switch connector (A).

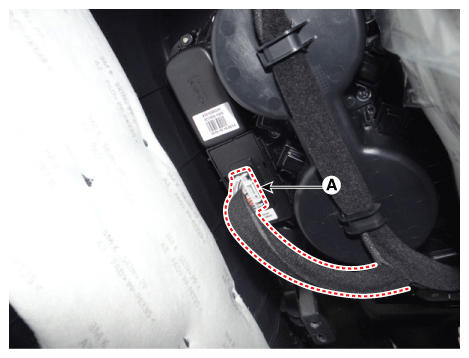

Fig 1: Locating Front Seat Heater Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the front seat heater switch (A) after loosening the mounting screws.

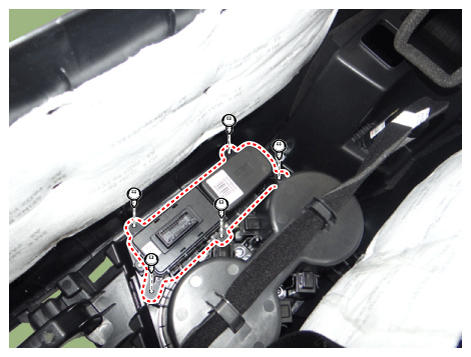

Fig 2: Removing Front Seat Heater Switch Mounting Screws

Courtesy of KIA MOTORS AMERICA, INC.

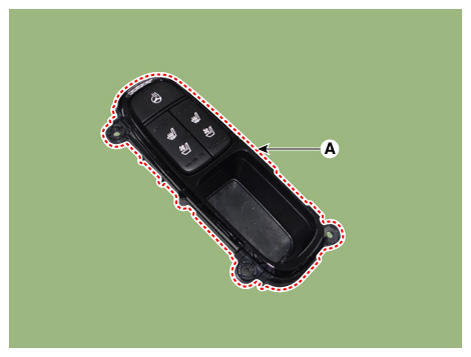

Fig 3: Locating Front Seat Heater Switch

Courtesy of KIA MOTORS AMERICA, INC.
