Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the front seat back cover.
(Refer to Body - "FRONT SEAT BACK COVER ")
Disconnect the lumbar support motor connector (A).

Fig 1: Locating Lumbar Support Motor Connector
Courtesy of KIA MOTORS AMERICA, INC.

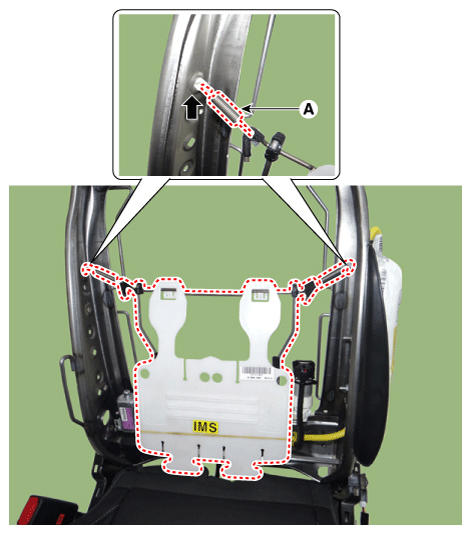

Separate the retaining clips (A) from the seat frame.

Fig 2: Separating Retaining Clips From Seat Frame
Courtesy of KIA MOTORS AMERICA, INC.
Remove the lumbar support assembly (B) after disengaging mounting clip (A).

Fig 3: Locating Mounting Clip

Courtesy of KIA MOTORS AMERICA, INC.

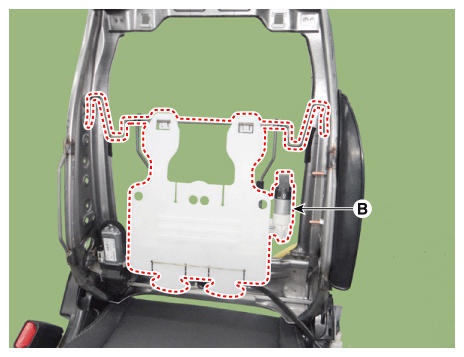

Fig 4: Locating Lumbar Support Assembly

Courtesy of KIA MOTORS AMERICA, INC.
