Section 148 (Body Control Module Diagnosis)
>>
DTC C1616-00: Can Bus Off (C-Can)
>>
Specification
>>
Signal Waveform & Data
Signal Waveform & Data
WARNING:
This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

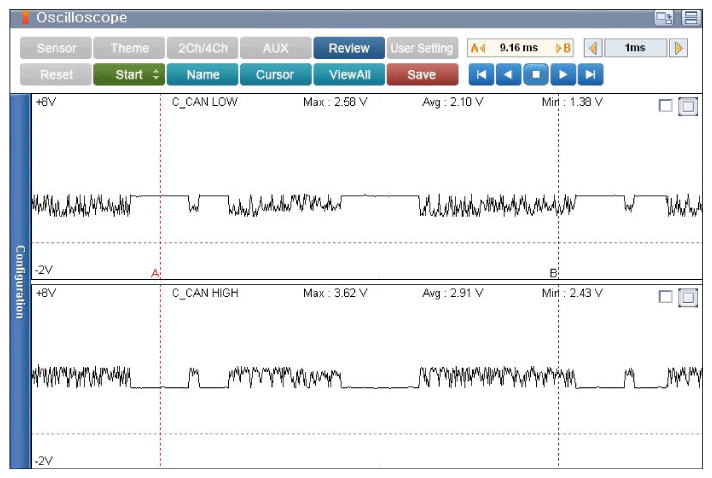

Fig 1: Scantool Display - C_CAN Low/High Signal Waveform
Courtesy of KIA MOTORS AMERICA, INC.

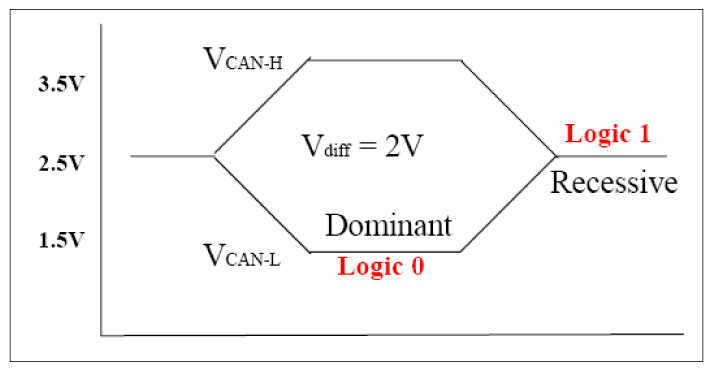

Fig 2: Scantool Display - Voltage Graph
Courtesy of KIA MOTORS AMERICA, INC.
