Components And Components Location: Components

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

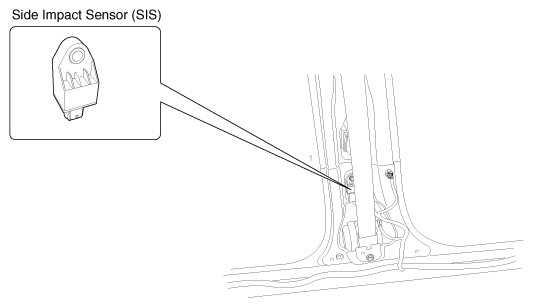

Fig 1: Side Impact Sensor Components Location
G12166272Courtesy of KIA MOTORS AMERICA, INC.
