Horn Relay Inspection

  1. Remove the horn relay (A) from the engine room relay box.
  2. There should be continuity between the No. 30 and No. 87 terminals when power and ground are connected to the No. 85 and No. 86 terminals.
  3. There should be no continuity between the No. 30 and No. 87 terminals when power is disconnected.

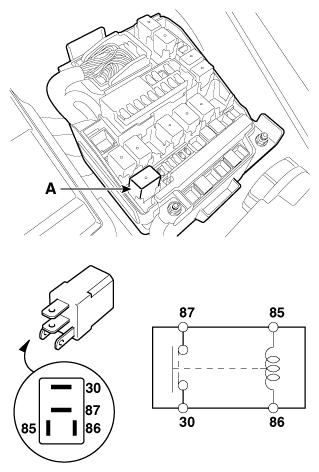

Fig 1: Locating Horn Relay & Circuit Diagram
G12164563Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Horn Relay Circuit Diagram Continuity Circuit Chart
G12164564Courtesy of KIA MOTORS AMERICA, INC.
