Repair Procedures: Inspection

  1. Disconnect the IMS control switch connector.

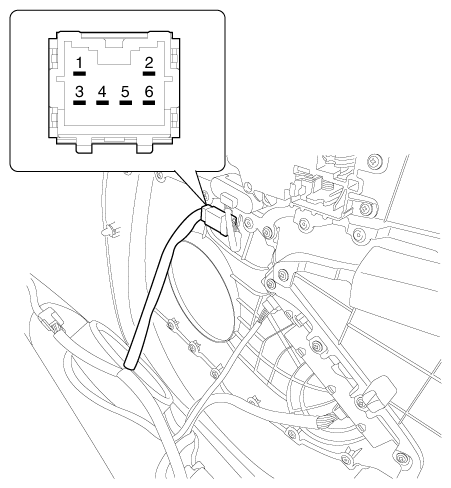

    Fig 1: IMS Power Seat Control Connector Terminals
    G12164724Courtesy of KIA MOTORS AMERICA, INC.
  2. With the power IMS control switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the IMS control switch.
Fig 2: IMS Power Seat Control Terminals Continuity Chart
G12164725Courtesy of KIA MOTORS AMERICA, INC.
