Home >> Kia >> 2017 >> Forte EX >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Hydraulic System - 2.0L GDI >> Valve Body >> Components And Components Location >> Components

Components And Components Location: Components

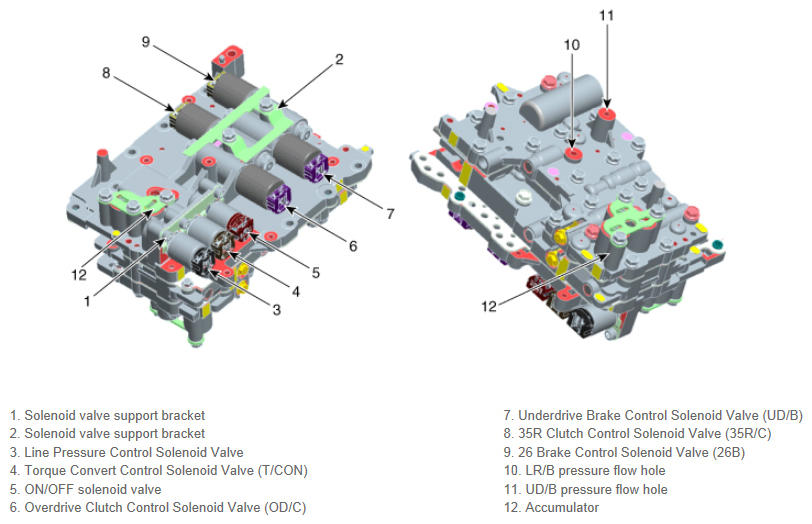

Fig 1: Locating Valve Body Components

G12163350

Courtesy of KIA MOTORS AMERICA, INC.
