Resistance Test

  1. Turn the ignition switch OFF.
  2. Disconnect the PTC heater connector.
  3. Measure the resistance between terminal 1 and PTC ON (+) of PTC heater and ground line.

    Resistance  : 0.3 - 1.2Ω

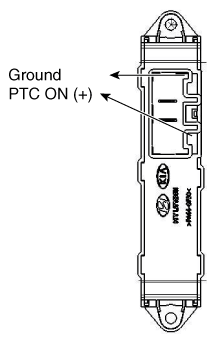

    Fig 1: PTC Heater Connector
    G12166759Courtesy of KIA MOTORS AMERICA, INC.
  4. If the measured resistance is not within specification, replace the PTC heater with a new one.
