Repair Procedures: Inspection

Check the brake fluid level in the brake fluid reservoir. The level should be between "MIN" and "MAX" marks on the side of the reservoir.

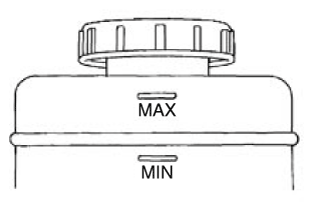

Fig 1: Checking Brake Fluid Level

Courtesy of KIA MOTORS AMERICA, INC.

Use only hydraulic brake fluid conforming to DOT 3 or DOT 4 specification.

Check the brake system for any leakage if the fluid level is extremely low (lower than MIN).
