Repair Procedures: Replacement

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the hood weatherstrip (A).
    NOTE:
    • Be careful not to scratch the hood weatherstrip.

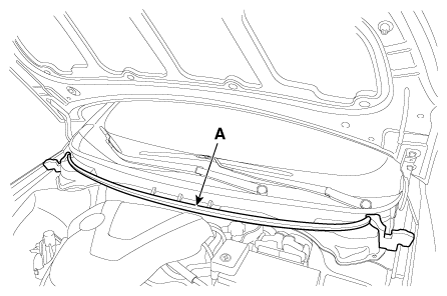

    Fig 1: Locating Hood Weatherstrip
    G12163935Courtesy of KIA MOTORS AMERICA, INC.
  2. Install in the reverse order of removal.
