Repair Procedures: Replacement

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. After loosening the mounting screw, then remove the hood latch release handle (A).

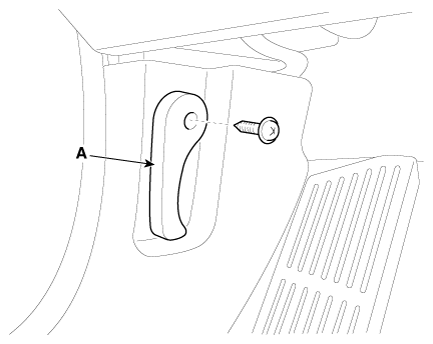

    Fig 1: Locating Hood Latch Release Handle With Mounting Screw
    G12163937Courtesy of KIA MOTORS AMERICA, INC.
  2. Install in the reverse order of removal.

    Information

    • Make sure the hood latch cable is connected properly.
    • Make sure the hood locks/unlocks and opens/closes properly.
