Removal And Installation

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine cover.
Drain the engine coolant.
(Refer to Cooling System - "COOLANT ")
Remove the air cleaner assembly.
(Refer to Intake And Exhaust System - "AIR CLEANER ")
Disconnect the radiator upper hose.
(Refer to Cooling System - "RADIATOR ")
Disconnect the Heater Hose.
(Refer to Engine And Transmission Assembly - "ENGINE AND TRANSMISSION ASSEMBLY ")
Disconnect the bypass hose (A) and the throttle body coolant hose (B) (if equipped).

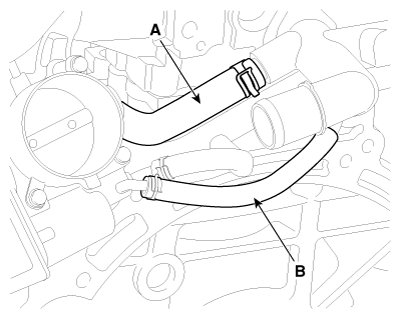

Fig 1: Disconnecting Bypass Hose And Throttle Body Coolant Hose
Courtesy of KIA MOTORS AMERICA, INC.
Remove the water temperature control assembly (A) with the O-ring (B).
Tightening Torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

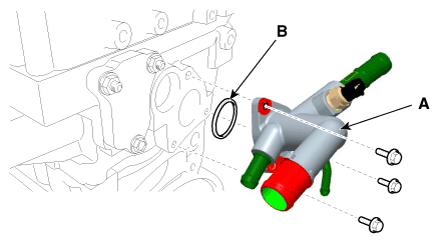

Fig 2: Removing Water Temperature Control Assembly With O-Ring
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Install a new O-ring.
- Clean surface on the O-ring and install the O-ring after wetting with water.
Install in the reverse order of removal.
Fill the engine coolant.
(Refer to Cooling System - "COOLANT ")
Start engine and check for leaks.
