Repair Procedures: Replacement

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

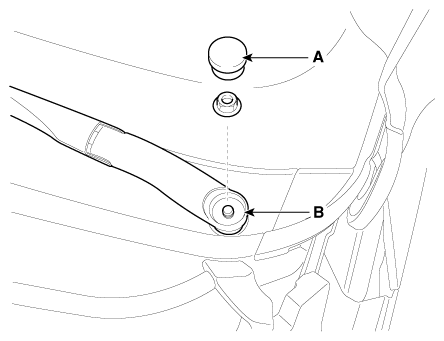

Remove the cap (A) and remove the nuts, then remove the wiper arm (B).
Tightening torque:

22.6 - 26.5 N.m (2.3 - 2.7 kgf.m, 16.6 - 19.5 lb.ft)

Fig 1: Locating Wiper Arm And Cap With Nuts
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the nozzle hose (B).

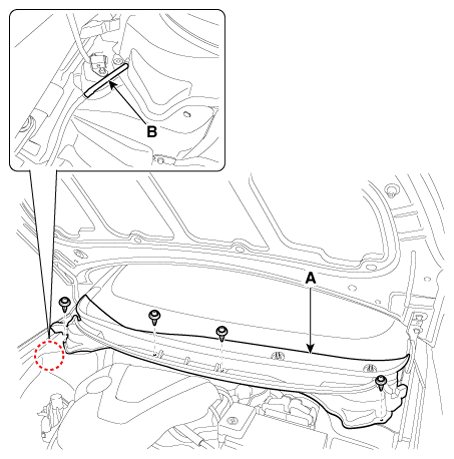

Detach the clips, then remove the cowl top cover (A).
Information
- Clean the bottom side of windshield glass which be close by cowl top cover.
Fig 2: Locating Cowl Top Cover And Nozzle Hose With Clips
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Replace any damaged clips.
