Removal and Installation

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine cover.
Disconnect the battery negative terminal.
Remove the air cleaner assembly.
(Refer to Intake And Exhaust System - "AIR CLEANER ")
Remove the engine room under cover.
(Refer to Engine And Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

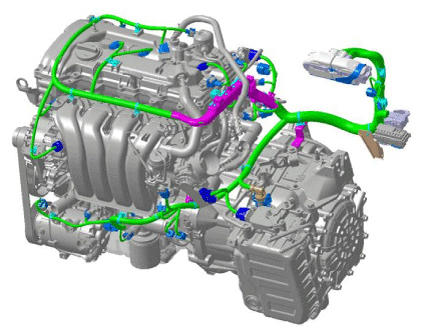

Disconnect the wiring connectors and harness clamps and remove the wiring protector around the intake manifold.

Fig 1: Disconnect Wiring Connectors & Harness Clamps
Courtesy of KIA MOTORS AMERICA, INC.

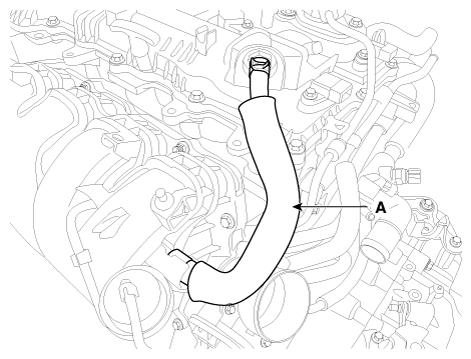

Disconnect the positive crankcase ventilation (PCV) hose (A).

Fig 2: Disconnect Positive Crankcase Ventilation (PCV) Hose
Courtesy of KIA MOTORS AMERICA, INC.

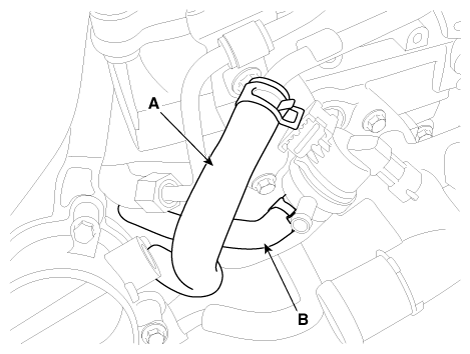

Disconnect the vacuum hose (A) and purge control solenoid valve (PCSV) hose (B).

Fig 3: Disconnect Vacuum & Purge Control Solenoid Valve (PCSV) Hoses
Courtesy of KIA MOTORS AMERICA, INC.
Unfasten the electric throttle body control (ETC) module bolts.
(Refer to Engine Control/Fuel System - "ETC (ELECTRIC THROTTLE BODY CONTROL) SYSTEM ")

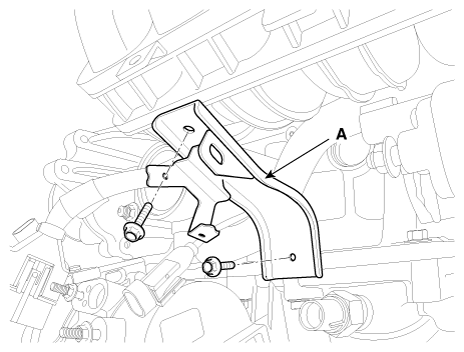

Remove the intake manifold stay (A).
Tightening torque:

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)

Fig 4: Remove Intake Manifold Stay With Bolts
Courtesy of KIA MOTORS AMERICA, INC.

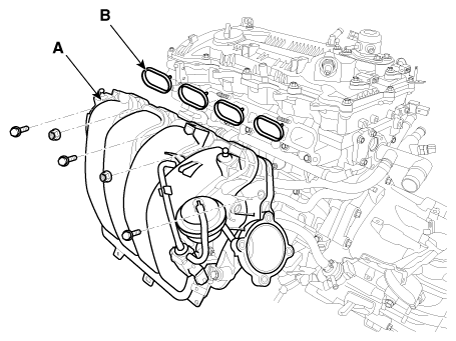

Remove the intake manifold (A) with the gasket (B).
Tightening torque:

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)

Fig 5: Remove Intake Manifold With Gasket & Bolts
Courtesy of KIA MOTORS AMERICA, INC.

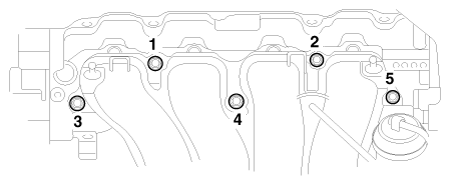

NOTE: When installing the intake manifold, tighten the bolts and nuts with pre-torque first, and then tighten the bolts and nuts with specified torque in the sequence shown.

Fig 6: Intake Manifold Bolts Tightening Sequence
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
