Vanity Lamp

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the vanity lamp (A) using a screwdriver or remover and then disconnect the connector (B).

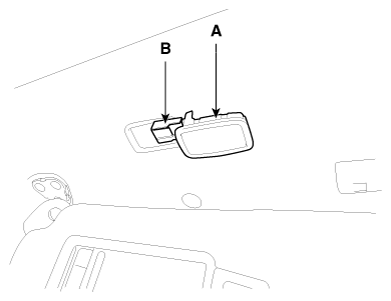

Fig 1: Vanity Lamp
G12166468Courtesy of KIA MOTORS AMERICA, INC.
