Room Lamp

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Check that the switch operates properly after disconnecting the room lamp connector (A).

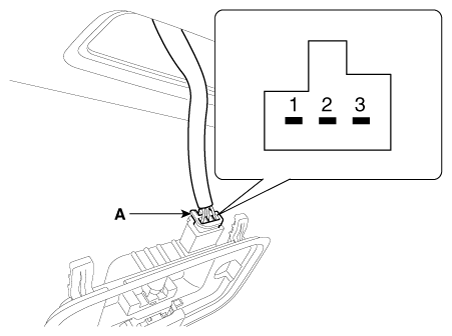

Fig 1: Room Lamp Connector Terminals

Courtesy of KIA MOTORS AMERICA, INC.

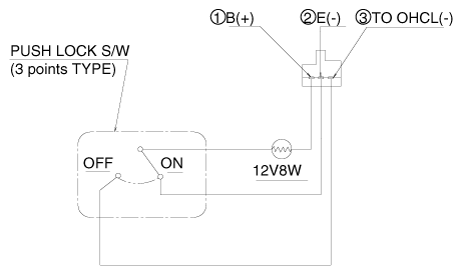

Fig 2: Room Lamp Circuit Diagram

Courtesy of KIA MOTORS AMERICA, INC.

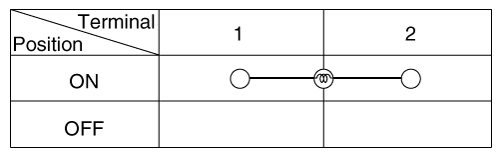

Fig 3: Room Lamp Connector Terminals Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.
