Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the front bumper cover.
(Refer to Body - "FRONT BUMPER COVER ")
Remove the front fog lamp connectors (A) from the front bumper.
[LH]

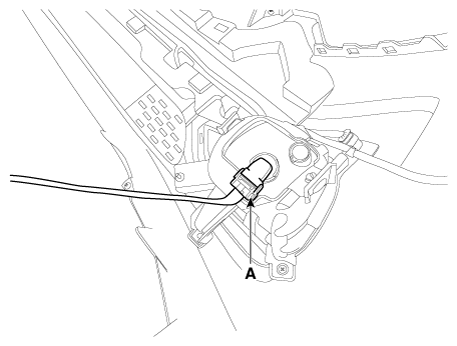

Fig 1: Front Fog Lamp Connectors From Front Bumper (LH)
Courtesy of KIA MOTORS AMERICA, INC.

[RH]

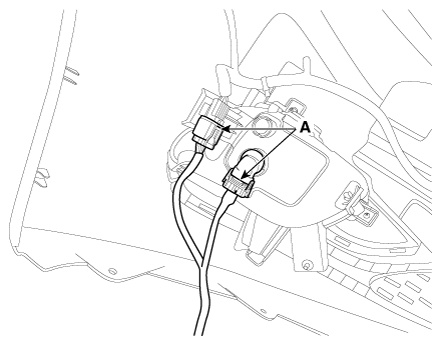

Fig 2: Front Fog Lamp Connectors From Front Bumper (RH)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the front fog bulb (A) turning it in the counter-clockwise direction.

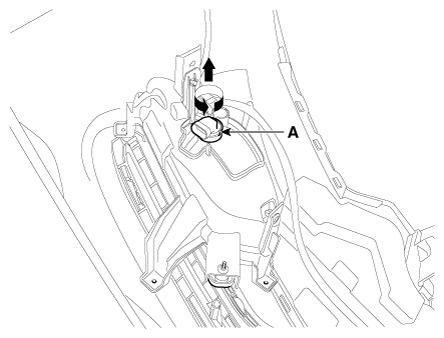

Fig 3: Turning Front Fog Bulb Counter-Clockwise
Courtesy of KIA MOTORS AMERICA, INC.
Remove the front fog lamp assembly (A) after loosening the screws.

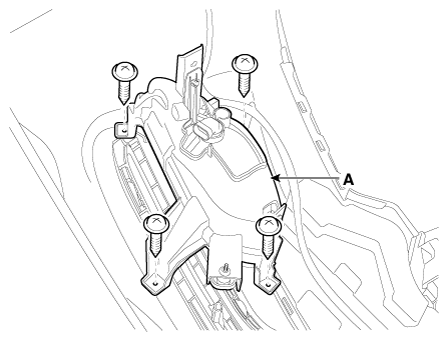

Fig 4: Front Fog Lamp Assembly Screws

Courtesy of KIA MOTORS AMERICA, INC.
