Dimmer And Passing Switch

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

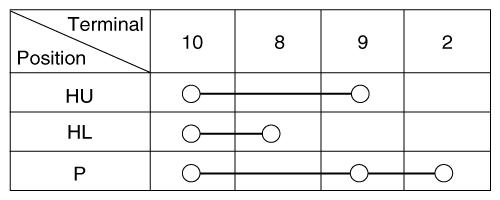

Fig 1: Dimmer And Passing Switch Terminal Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.

HU: Head lamp high beam

HL: Head lamp low beam

P: Head lamp passing switch
