Monitor KDS/GDS Data
WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition |
Inspection Procedure |
Reference |
- Ignition "ON".
|
- Connect KDS/GDS to Data Link Connector (DLC).

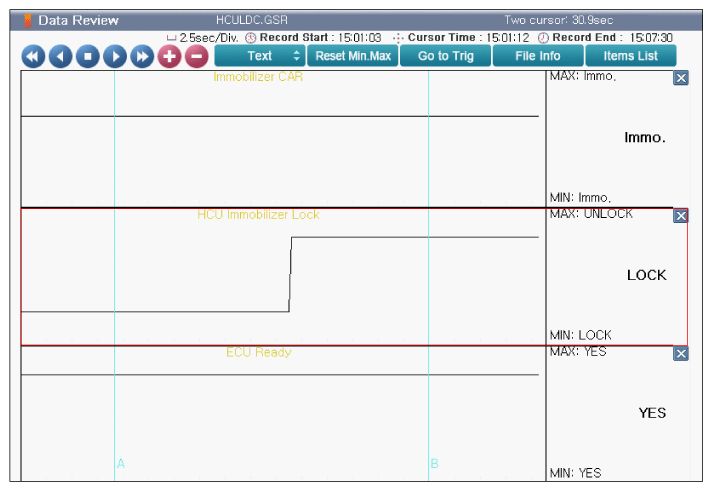

- Monitor parameters in "Current Data" with GDS/KDS.
- If the "HCU Immobilizer Lock" value is unlock, check below parts.
- Check whether Key registration is OK, immobilizer system is functioning well, CAN DTC is set or Engine ECU has no problem.
|
Fig 1 |
Courtesy of KIA MOTORS AMERICA, INC.
| Good |
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
|
| No Good |
|
