Body Sensor Reset
WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition |
Inspection Procedure |
Reference |
- Ignition "ON", engine "OFF".
|
- Connect KDS/GDS to Data Link Connector (DLC).

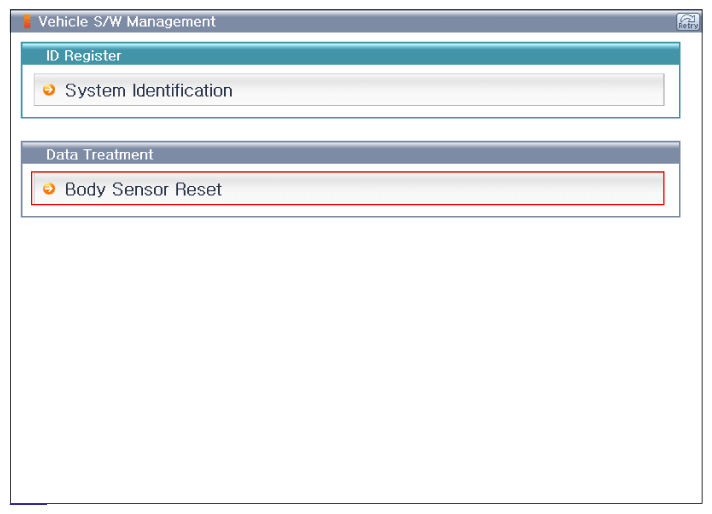

- Perform "Body Sensor Reset" in "Vehicle S/W management".
|

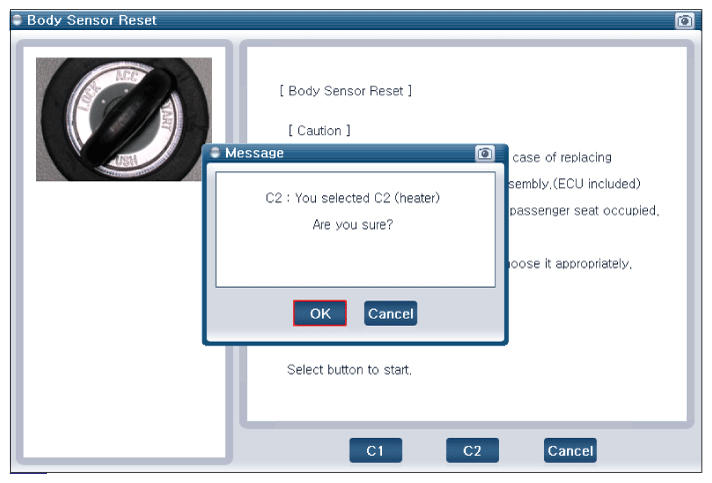

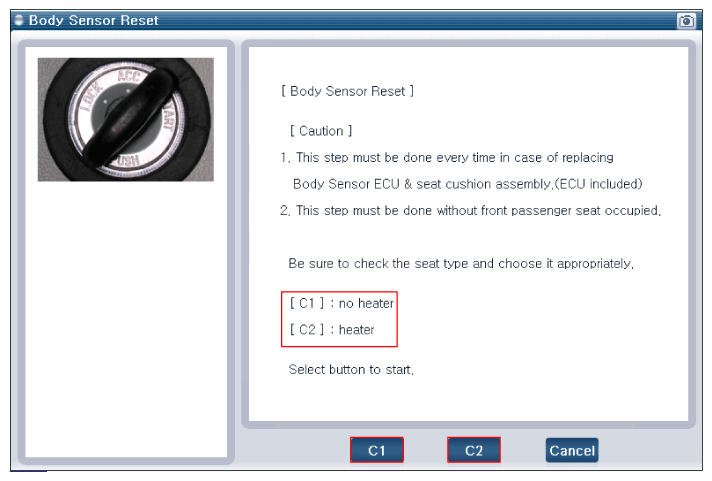

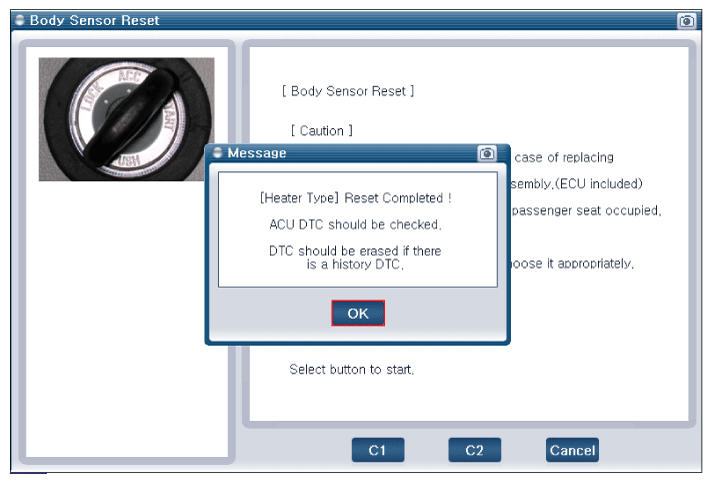

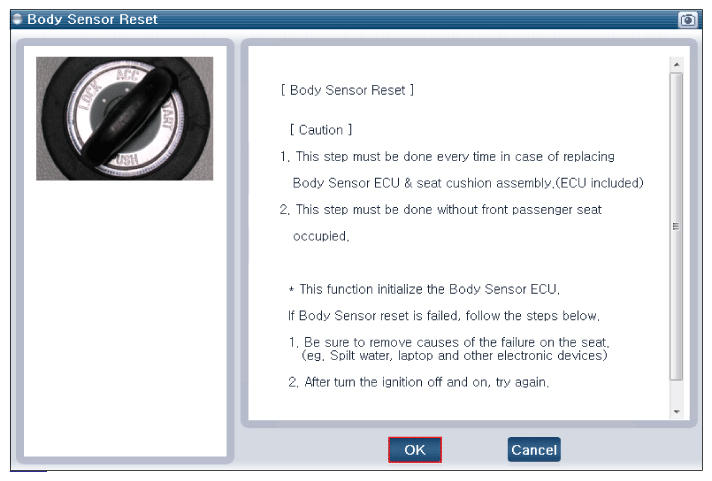

Fig 1 to Fig 5 |
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
| Good |
- Check module connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
|
| No Good |
|
