Monitor DTC Status
WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition |
Inspection Procedure |
Reference |
- Ignition "ON".
|
- Connect KDS/GDS to Data Link Connector (DLC).
- Monitor "Diagnostic Trouble Codes (DTC)" with KDS/GDS.
|

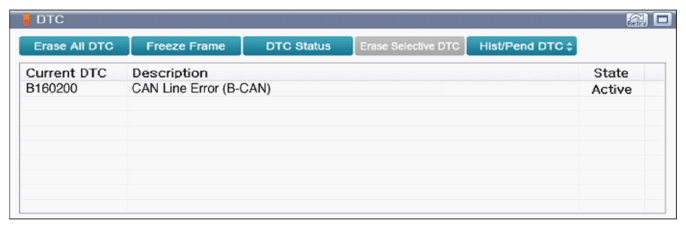

Fig.1 |
Courtesy of KIA MOTORS AMERICA, INC.
| Active Fault |
|
| History/Pending Fault |
- Fault is intermittent caused by poor contact in DDM's connector or was repaired and DDM memory was not cleared.
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary, go to "VERIFICATION OF REPAIR " procedure.
|
