Repair Procedures: Installation

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Wrap tape around the driveshaft spline (TJ) to prevent damage to the boot.
Using the alignment marks (D) made during disassembly as a guide, install the spider assembly (A) and snap ring (B) on the driveshaft splines (C).

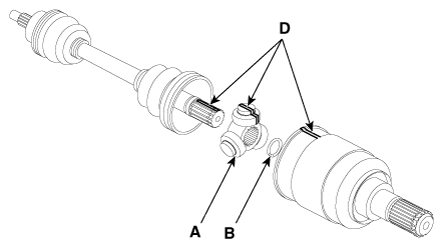

Fig 1: Installing Spider Assembly And Snap Ring On Driveshaft Splines (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

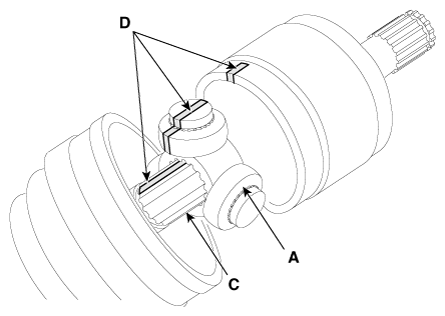

Fig 2: Installing Spider Assembly And Snap Ring On Driveshaft Splines (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Add specified grease to the joint boot as much as it was wiped away at inspection.
Install the both boot band.

To control the air in the TJ boot, keep the specified distance between the boot bands when they are tightened.

Engine	Distance (L) mm (in.)
Engine	LH side	RH side
1.6 GDI KAPPA	449.3 (17.689)	475.7 (18.728)

Fig 3: Checking Distance Between Boot Bands

Courtesy of KIA MOTORS AMERICA, INC.

Using the SST (09495-3K000), secure the TJ boot bands.
Clearance (A): 2.0 mm (0.0787 in.) or less

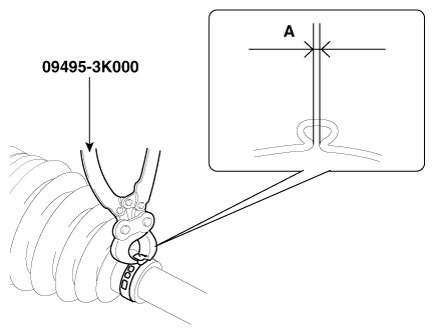

Fig 4: Securing TJ Boot Bands Using SST (09495-3K000)
Courtesy of KIA MOTORS AMERICA, INC.
Install the Front Driveshaft.
(Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
Check the front alignment.
(Refer to Suspension System - "ALIGNMENT ")
