Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

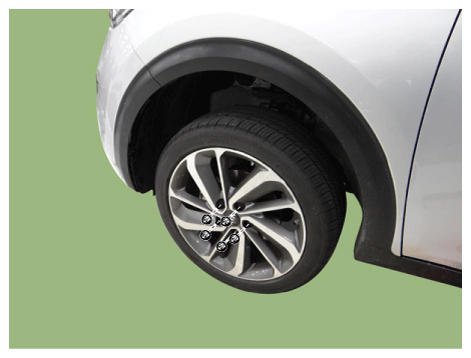

Remove the wheel and tire.
Tightening Torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

Fig 1: Removing Wheel And Tire
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Be careful not to damage the wheel nuts when removing the wheel and tire.

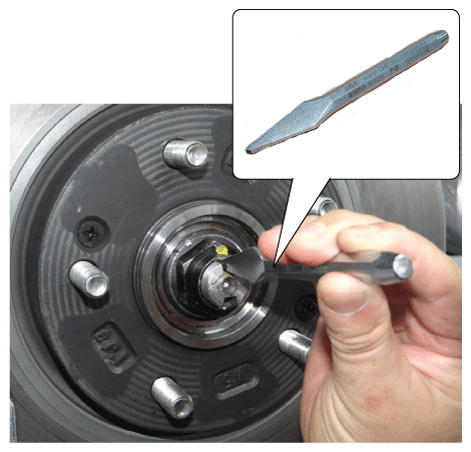

By hammering on a chisel, unlock the driveshaft lock hub nut caulking.

Fig 2: Removing Driveshaft Lock Hub Nut Caulking
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: If there is screw thread (A) on the end of the nut, unlock the caulking by using a chisel and then loosen the nut to prevent damaging driveshaft screw thread.

Fig 3: Screw Thread
Courtesy of KIA MOTORS AMERICA, INC.

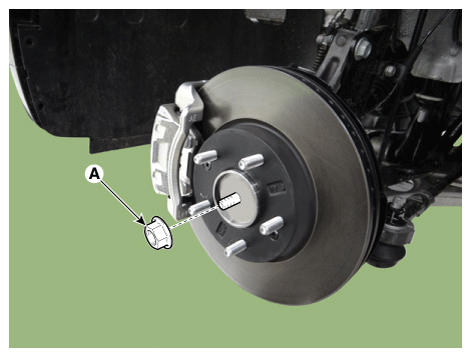

Remove the caulking nut (A) from the front axle.
Tightening Torque:

274.6 - 294.2 N.m (28.0 - 30.0 kgf.m, 202.5 - 217.0 lb.ft)

Fig 4: Removing Caulking Nut From Front Axle
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- The driveshaft lock nut must be replaced with new one. When replacing the drive lock hub nut, use only the nut with screw thread (A) on the end

  Fig 5: Driveshaft Lock Nut
  Courtesy of KIA MOTORS AMERICA, INC.

  Fig 6: Screw Thread
  Courtesy of KIA MOTORS AMERICA, INC.
- Tighten the driveshaft lock hub nut to the specified tightening torque, and caulk by using a chisel and hammer.
- If there are two key seats, perform on all two seats.
Caulking Depth (A): 1.5 mm (0.0591 in)

Fig 7: Driveshaft Lock Hub Nut Caulking Depth
Courtesy of KIA MOTORS AMERICA, INC.
Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

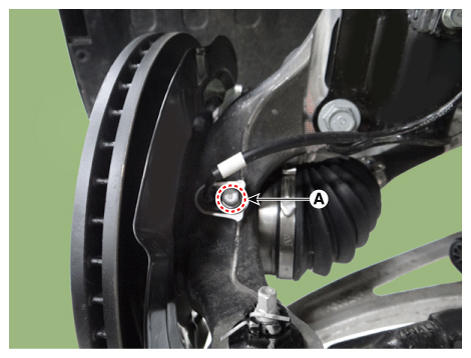

Remove the wheel speed sensor bolt (A).
Tightening Torque:

6.8 - 10.7 N.m (0.7 - 1.1 kgf.m, 5.0 - 7.9 lb.ft)

Fig 8: Removing Wheel Speed Sensor Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the wheel speed sensor bracket bolt (A).
Tightening Torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Fig 9: Removing Wheel Speed Sensor Bracket Bolt
Courtesy of KIA MOTORS AMERICA, INC.

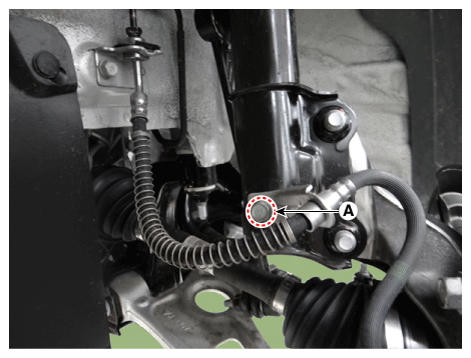

Remove the caliper hose bracket bolt (A).

Fig 10: Removing Caliper Hose Bracket Bolt
Courtesy of KIA MOTORS AMERICA, INC.

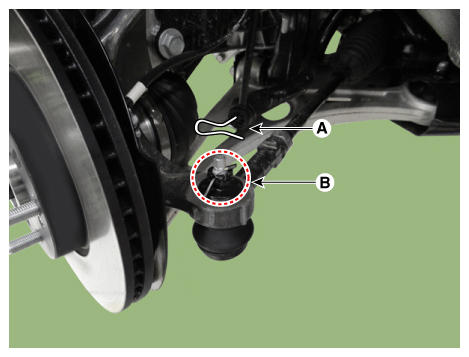

Remove the tie rod end pin (A) and nub (B).
Tightening Torque:

78.4 - 98.0 N.m (8.0 - 10.0 kgf.m, 57.8 - 72.3 lb.ft)

Fig 11: Removing Tie Rod End Pin And Nut
Courtesy of KIA MOTORS AMERICA, INC.

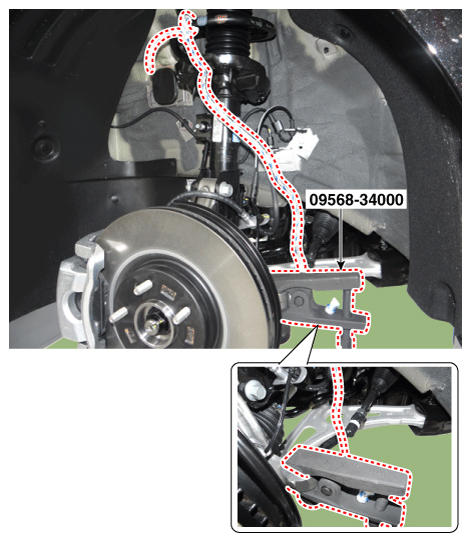

Remove the knuckle by using the SST (09568-34000).

Fig 12: Removing Knuckle Using SST
Courtesy of KIA MOTORS AMERICA, INC.

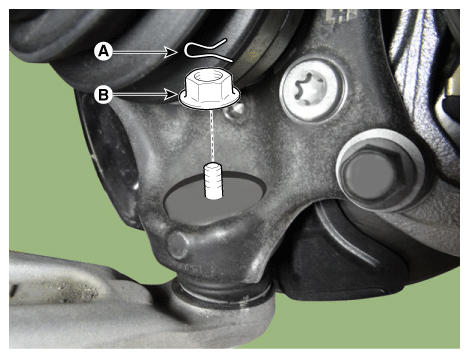

Remove the lower arm pin (A) and nut (B).
Tightening Torque:

78.4 - 98.0 N.m (8.0 - 10.0 kgf.m, 57.8 - 72.3 lb.ft)

Fig 13: Removing Lower Arm Pin And Nut
Courtesy of KIA MOTORS AMERICA, INC.

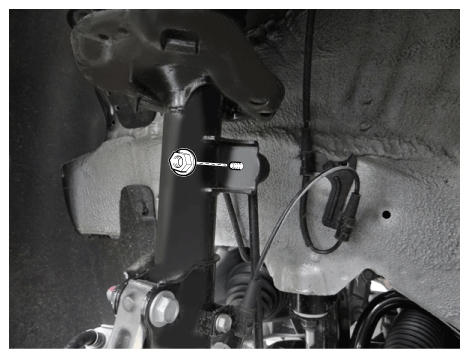

Remove the stabilizer link nut.
Tightening Torque:

98.0 - 117.6 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.7 lb.ft)

Fig 14: Removing Stabilizer Link Nut
Courtesy of KIA MOTORS AMERICA, INC.

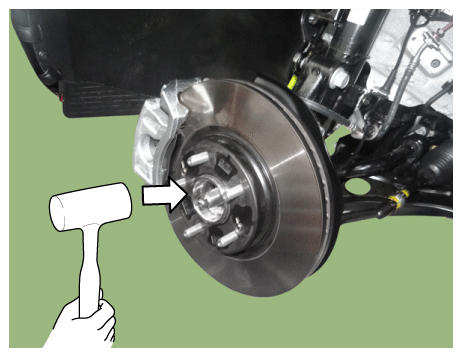

Using a plastic hammer, disconnect driveshaft from the axle hub.

Fig 15: Disconnecting Driveshaft From Axle Hub
Courtesy of KIA MOTORS AMERICA, INC.

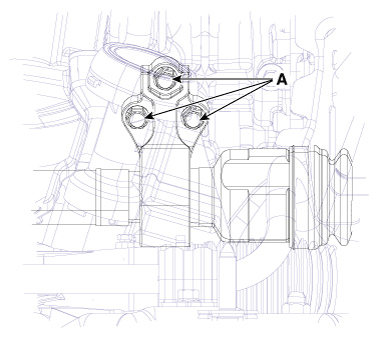

Remove the inner shaft bearing bracket bolt (A).
Tightening Torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

Fig 16: Removing Inner Shaft Bearing Bracket Bolt
Courtesy of KIA MOTORS AMERICA, INC.

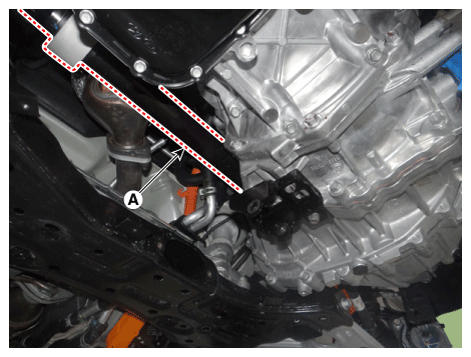

Remove the drive shaft (A).

Fig 17: Removing Drive Shaft
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: If the drive shaft could not be ejected, remove the pry bar through the space between transmission and drive shaft.
Install in the reverse order of removal.

CAUTION:

Use a pry bar being careful not to damage the transaxle and joint.
Do not insert the pry bar too deep, as this may cause damage to the oil seal.
Do not pull the driveshaft by excessive force it may cause components inside the joint kit to dislodge resulting in a torn boot or a damaged bearing.
Plug the hole of the transaxle case with the oil seal cap to prevent contamination.
Support the driveshaft properly.
Replace the retainer ring whenever the driveshaft is removed from the transaxle case.
