[Passenger Side]

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the main crash pad assembly.

    (Refer to Body - "MAIN CRASH PAD ASSEMBLY ")

  3. Disconnect the connector and then remove the mode control actuator (A) after loosening the mounting screws.

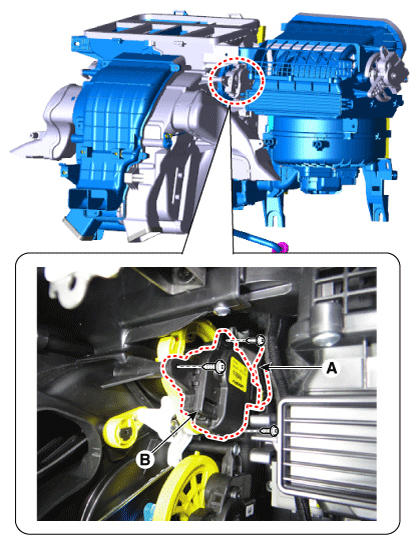

    Fig 1: Removing Mode Control Actuator Mounting Screws
    G12336159Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
