Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the steering wheel.
(Refer to Steering System - "STEERING WHEEL ")
Remove the steering column upper and lower shrouds after loosening the screws.
(Refer to Body - "STEERING COLUMN SHROUD PANEL ")
Remove the clock spring.
(Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

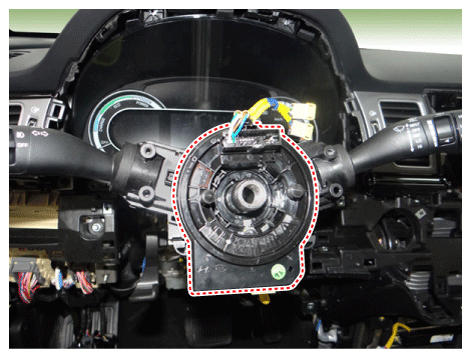

Fig 1: Locating Clock Spring
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the multifunction switch connector (A).

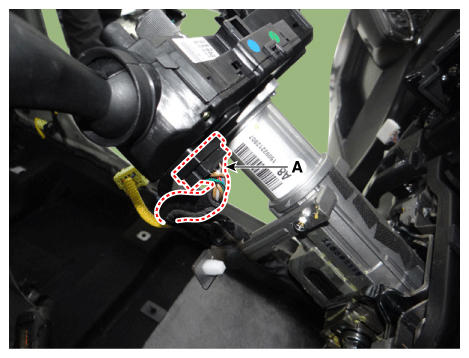

Fig 2: Locating Multifunction Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the multifunction switch assembly (A) after loosening the mounting screws.

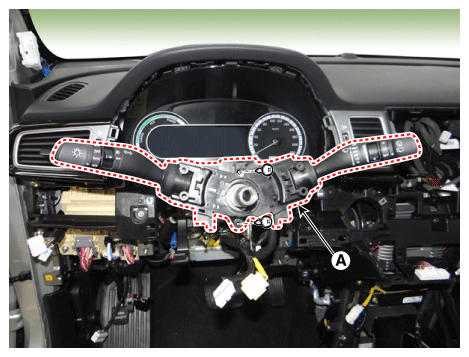

Fig 3: Removing Multifunction Switch Assembly Mounting Screws

Courtesy of KIA MOTORS AMERICA, INC.
