Repair Procedures: Inspection

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Remove the connector from the wiper motor.

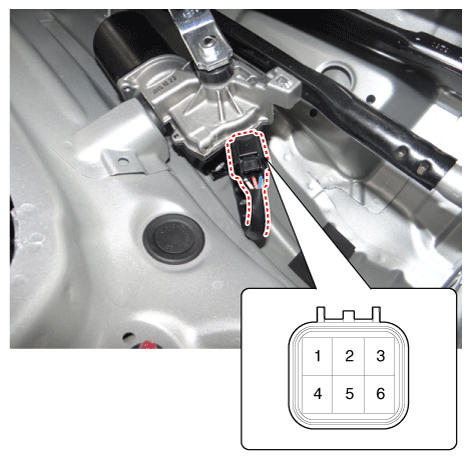

Fig 1: Wiper Motor Connector Terminal

Courtesy of KIA MOTORS AMERICA, INC.

No.	Description
1	-
2	IGN2
3	Wiper motor (Parking)
4	Wiper motor (High)
5	Ground
6	Wiper motor (Low)

Attach the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 5.

Fig 2: Attaching Positive (+) Lead From Battery To Terminal 2 And Negative (-) Lead To Terminal 5 (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Attaching Positive (+) Lead From Battery To Terminal 2 And Negative (-) Lead To Terminal 5 (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
