Washer Fluid Level Sensor Switch

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the engine room under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

  3. Remove the front wheel guard [RH].

    (Refer to Body - "FRONT WHEEL GUARD ")

  4. Drain the washer fluid to less than 650 cc.
  5. Remove the washer fluid level sensor switch (B) after disconnecting the connector (A).

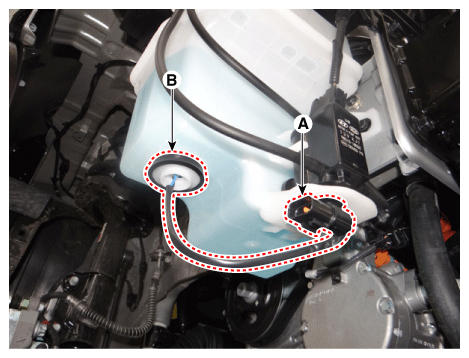

Fig 1: Removing Washer Fluid Level Sensor Switch
G12335216Courtesy of KIA MOTORS AMERICA, INC.
