Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable.
  2. Remove the universal bolt (A).

    Tightening Torque:

    32.4 - 37.3 N.m (3.3 - 3.8 kgf.m, 23.9 - 27.5 lb.ft)

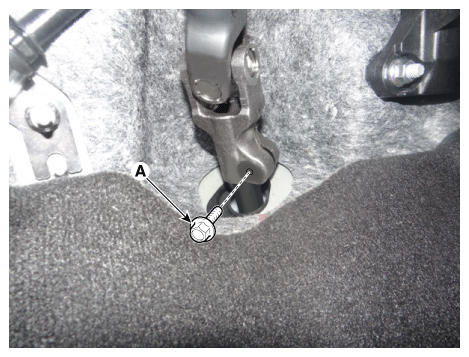

    Fig 1: Removing Universal Bolt
    G12329396Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION:
    • Keep neutral range to prevent damaging the clock spring inner cable when steering the wheel.
    • Do not reuse the bolt.
  3. Remove the wheel and tire.

    Tightening Torque:

    107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

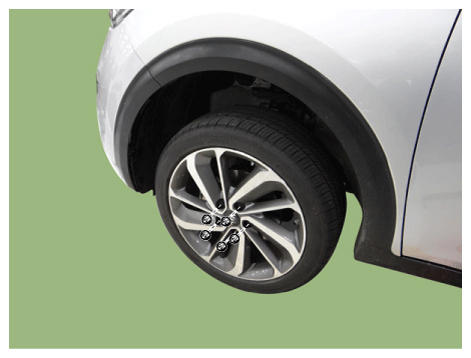

    Fig 2: Removing Wheel And Tire
    G12329397Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: Be careful not to damage the wheel nuts when removing the wheel and tire.
  4. Remove the under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

  5. Remove the tie rod end pin (A) and nub (B).

    Tightening Torque:

    78.4 - 98.0 N.m (8.0 - 10.0 kgf.m, 57.8 - 72.3 lb.ft)

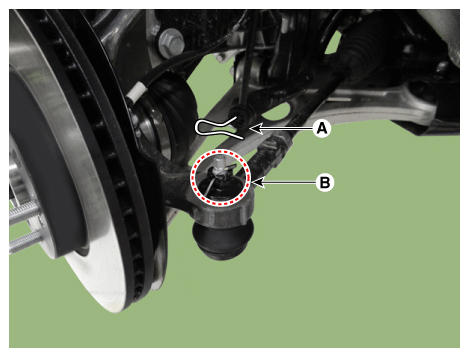

    Fig 3: Removing Tie Rod End Pin And Nub
    G12329398Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the knuckle by using the SST (09568-34000).

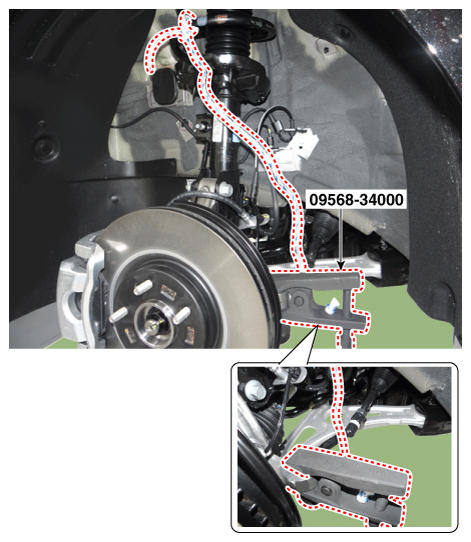

    Fig 4: Removing Knuckle
    G12329399Courtesy of KIA MOTORS AMERICA, INC.
  7. Remove the lower arm pin (A) and nut (B).

    Tightening Torque:

    78.4 - 98.0 N.m (8.0 - 10.0 kgf.m, 57.8 - 72.3 lb.ft)

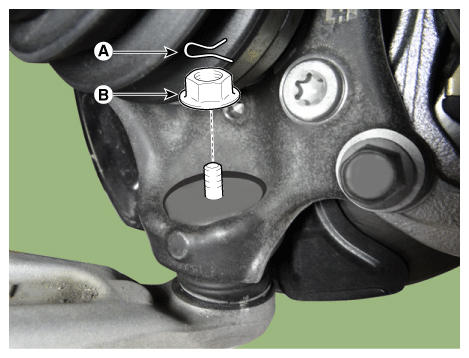

    Fig 5: Removing Lower Arm Pin And Nut
    G12329400Courtesy of KIA MOTORS AMERICA, INC.
  8. Remove the stabilizer link nut.

    Tightening Torque:

    98.0 - 117.6 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.7 lb.ft)

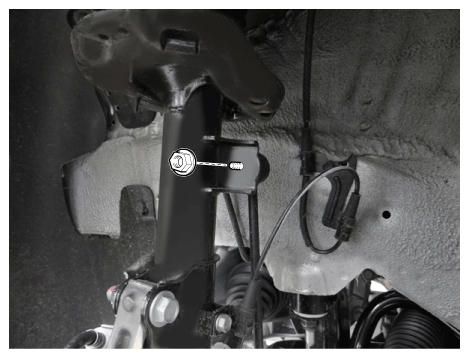

    Fig 6: Removing Stabilizer Link Nut
    G12329401Courtesy of KIA MOTORS AMERICA, INC.
  9. Loosen the nuts and then remove the heat protector.

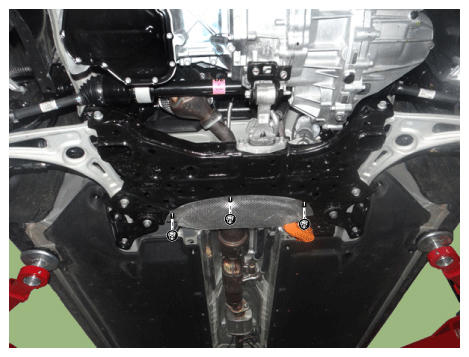

    Fig 7: Removing Heat Protector
    G12329402Courtesy of KIA MOTORS AMERICA, INC.
  10. Remove the hanger (A).

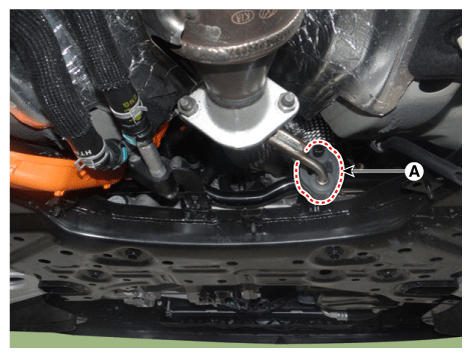

    Fig 8: Removing Hanger
    G12329403Courtesy of KIA MOTORS AMERICA, INC.
  11. Remove the roll rod bracket.

    (Refer to Engine Mechanical System - "ENGINE MOUNTING ")

  12. Loosen the bolts (A) and (B) and then remove the coolant pipe.

    Tightening Torque:

    6.8 - 10.7 N.m (0.7 - 1.1 kgf.m, 5.0 - 7.9 lb.ft)

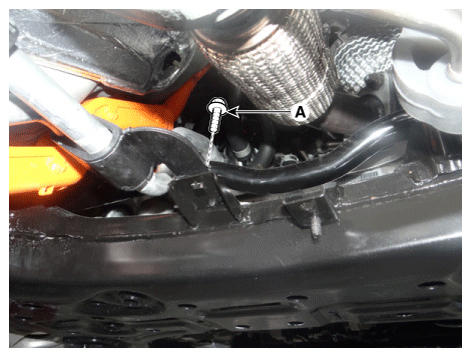

    Fig 9: Removing Coolant Pipe Bolts (1 Of 2)
    G12329404Courtesy of KIA MOTORS AMERICA, INC.

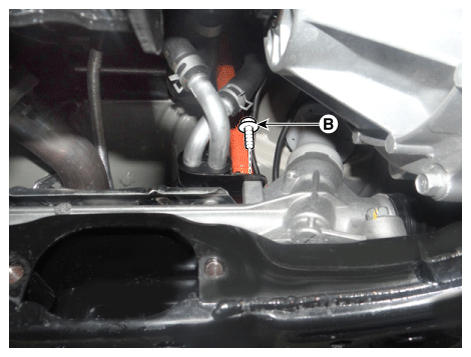

    Fig 10: Removing Coolant Pipe Bolts (2 Of 2)
    G12329405Courtesy of KIA MOTORS AMERICA, INC.
  13. Loosen the bolts (A, B) and nuts (C, D) and then remove the sub frame (D).

    Tightening Torque:

    Bolts:

    (A) 44.1 - 53.9 N.m (4.5 - 5.5 kgf.m, 32.5 - 39.8 lb.ft)

    (B) 156.9 - 176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb.ft)

    Nuts:

    (C) 156.9 - 176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb.ft)

    (D) 44.1 - 53.9 N.m (4.5 - 5.5 kgf.m, 32.5 - 39.8 lb.ft)

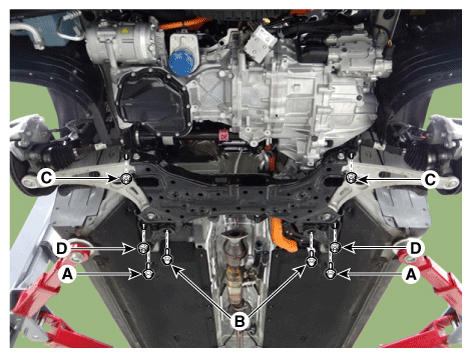

    Fig 11: Removing Sub Frame Bolts And Nuts
    G12329406Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: Set up the transmission jack under the subframe in order to remove the shock absorber in no-load condition.
  14. Loosen the bolts and then remove the gearbox heat protector.

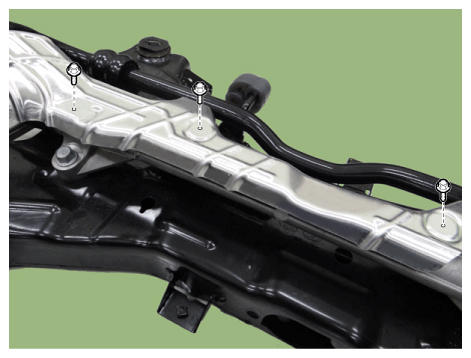

    Fig 12: Removing Gearbox Heat Protector
    G12329407Courtesy of KIA MOTORS AMERICA, INC.
  15. Loosen the bolts and then remove the front stabilizer bar.

    Tightening Torque:

    44.1 - 53.9 N.m (4.5 - 5.5 kgf.m, 32.5 - 39.8 lb.ft)

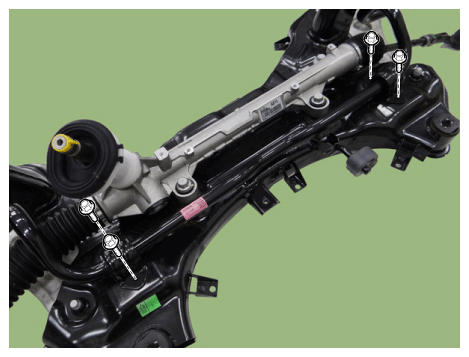

    Fig 13: Removing Front Stabilizer Bar
    G12329408Courtesy of KIA MOTORS AMERICA, INC.
  16. Install in the reverse order of removal.
  17. Check the wheel alignment.

    (Refer to Suspension System - "ALIGNMENT ")
