Repair Procedures: Replacement

Information

• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Be careful not to bend or scratch the trim and panels.

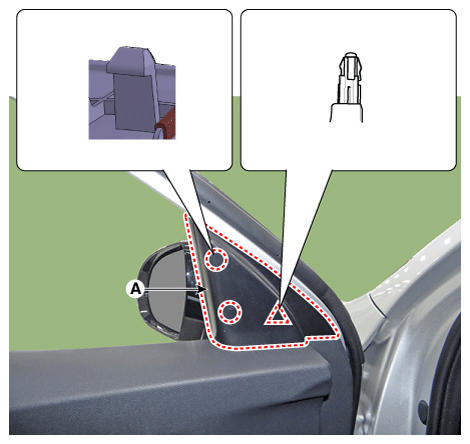

1. Remove the front door quadrant inner cover (A) by using a remover.
   Fig 1: Removing Front Door Quadrant Inner Cover By Using Remover

   Courtesy of KIA MOTORS AMERICA, INC.

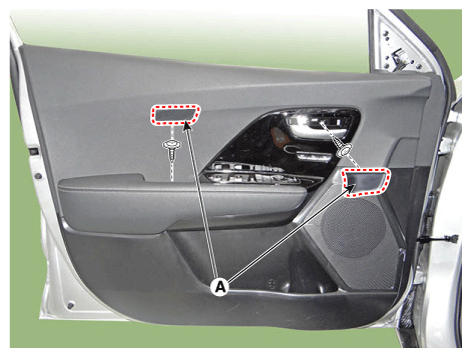

2. Disconnect the cap (A) after loosening the screw.
   Fig 2: Locating Cap

   Courtesy of KIA MOTORS AMERICA, INC.

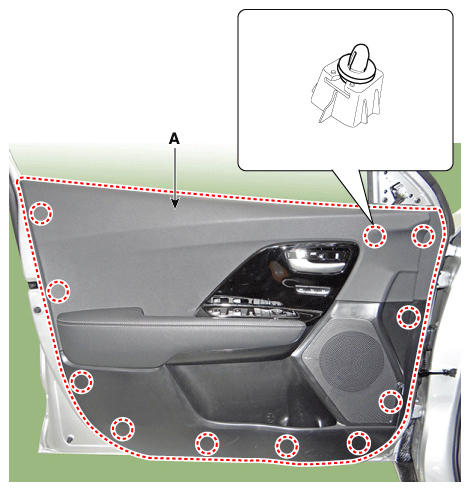

3. Remove the front door trim (A).
   Fig 3: Locating Front Door Trim

   Courtesy of KIA MOTORS AMERICA, INC.

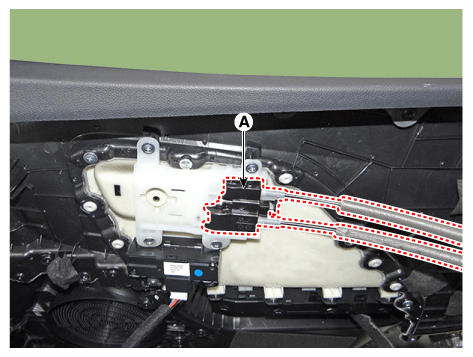

4. Remove the front door inside handle cage (A). Disconnect the IMS connector (B).
   Fig 4: Locating Front Door Inside Handle Cage

   Courtesy of KIA MOTORS AMERICA, INC.

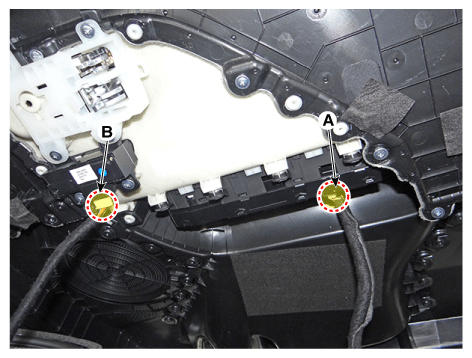

5. Disconnect the power window switch connector (A) and IMS switch connector (B).
   Fig 5: Locating Power Window Switch Connector And IMS Switch Connector

   Courtesy of KIA MOTORS AMERICA, INC.
6. Install in the reverse order of removal.

Information

• Make sure the connector is connected properly.
• Make sure the door locks/unlocks and opens/closes properly.
• Replace any damaged clips.
