Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to protect your hands.

Information

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.

Remove the front door trim.
(Refer to Front Door - "FRONT DOOR TRIM ")
Remove the front door inside handle (A) after loosening the screws.

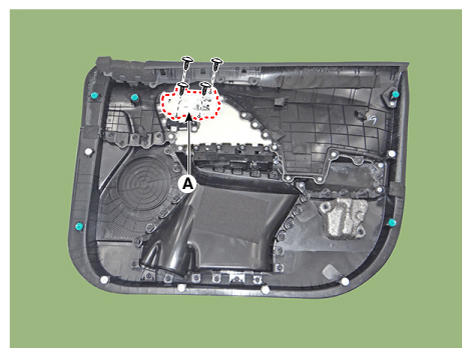

Fig 1: Removing Front Door Inside Handle Screws

Courtesy of KIA MOTORS AMERICA, INC.

Information

Make sure the connector is connected properly.
Make sure the door locks/unlocks and opens/closes properly.
Replace any damaged clips.
